Procedure for Using Measurement Tool

Measurement method for measurement locations a, c and e

• Set the measurement tool so that it contacts the measurement location perpendicularly.
  CAUTION: When using the measurement tool, be careful not to damage the coating film. When setting the measurement tool to the measurement location, lightly set the measurement tool to prevent damage to the coating film without creating a gap in the measurement location.

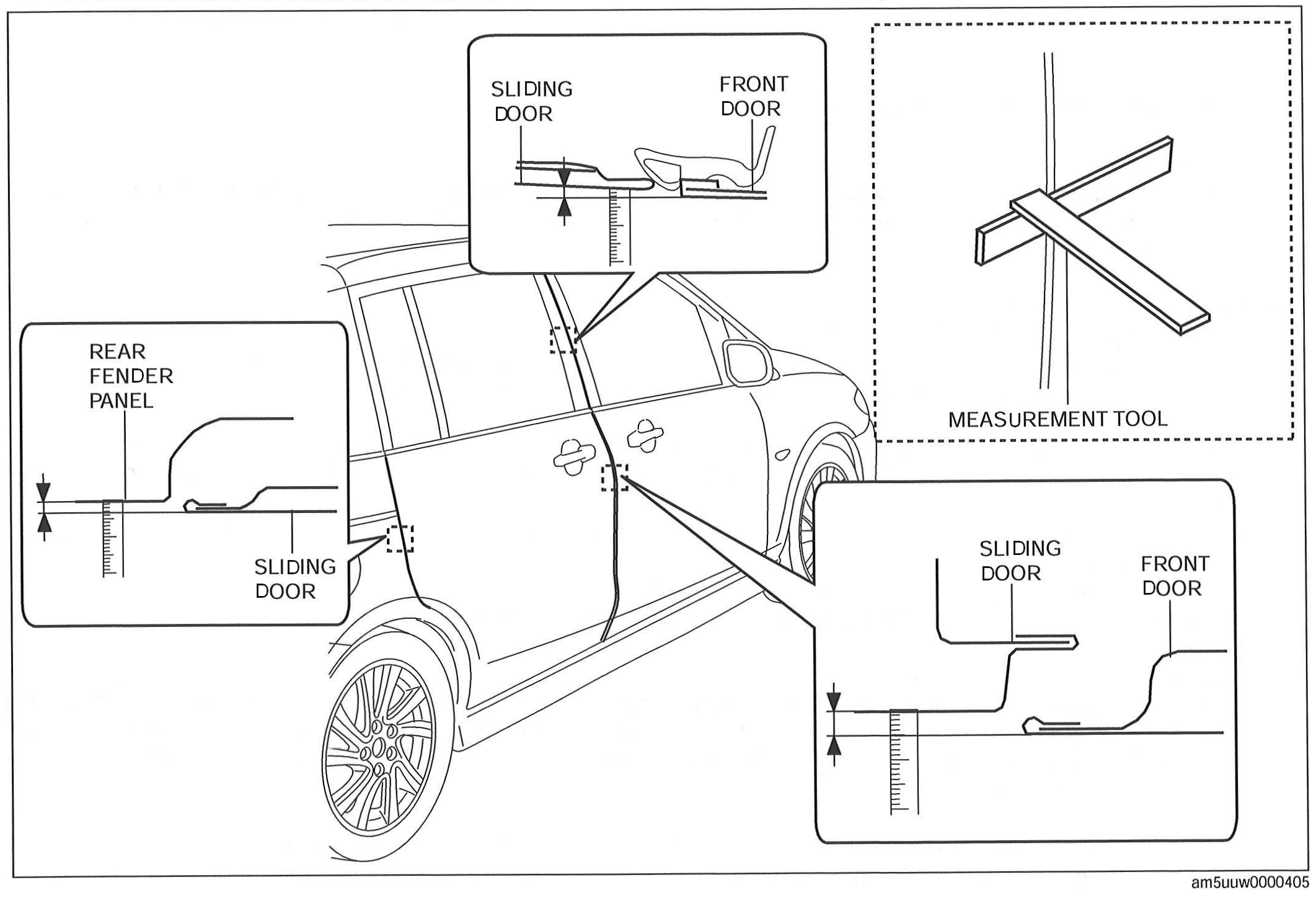

  Fig 1: Procedure For Using Measurement Tool

  Courtesy of MAZDA MOTORS CORP.

Measurement method for measurement locations b, d and f

• Set the measurement tool to the measurement location as shown in the figure.

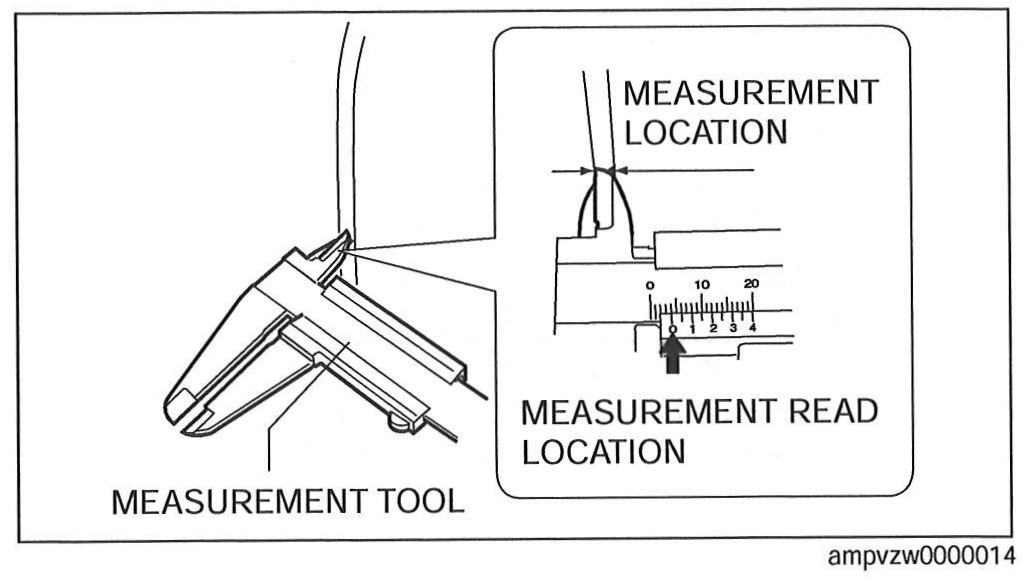

  Fig 2: Identifying Measurement Locations

  Courtesy of MAZDA MOTORS CORP.
  CAUTION: When using the measurement tool, be careful not to damage the coating film. When setting the measurement tool to the measurement location, lightly set the measurement tool to prevent damage to the coating film without creating a gap in the measurement location.

Measurement method for measurement location g

• Set the measurement tool to the measurement location as shown in the figure.

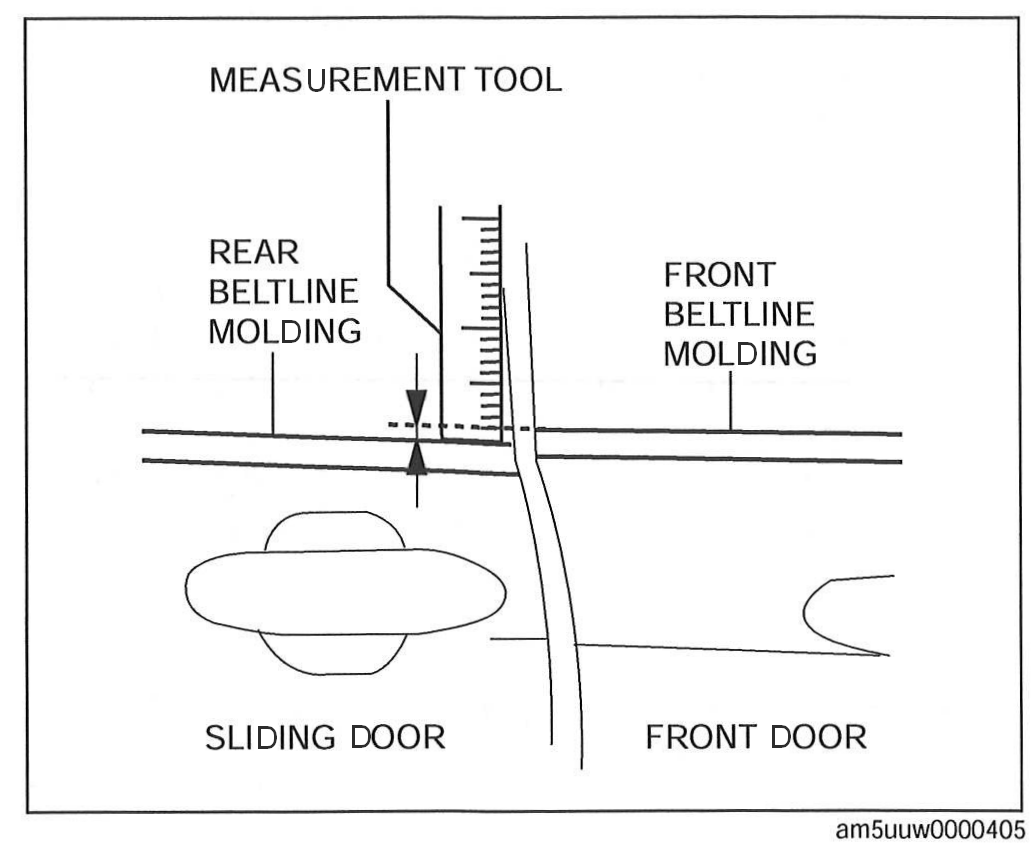

  Fig 3: Identifying Measurement Locations

  Courtesy of MAZDA MOTORS CORP.
  CAUTION: When using the measurement tool, be careful not to damage the coating film. When setting the measurement tool to the measurement location, lightly set the measurement tool to prevent damage to the coating film without creating a gap in the measurement location.
