Locks and Openers

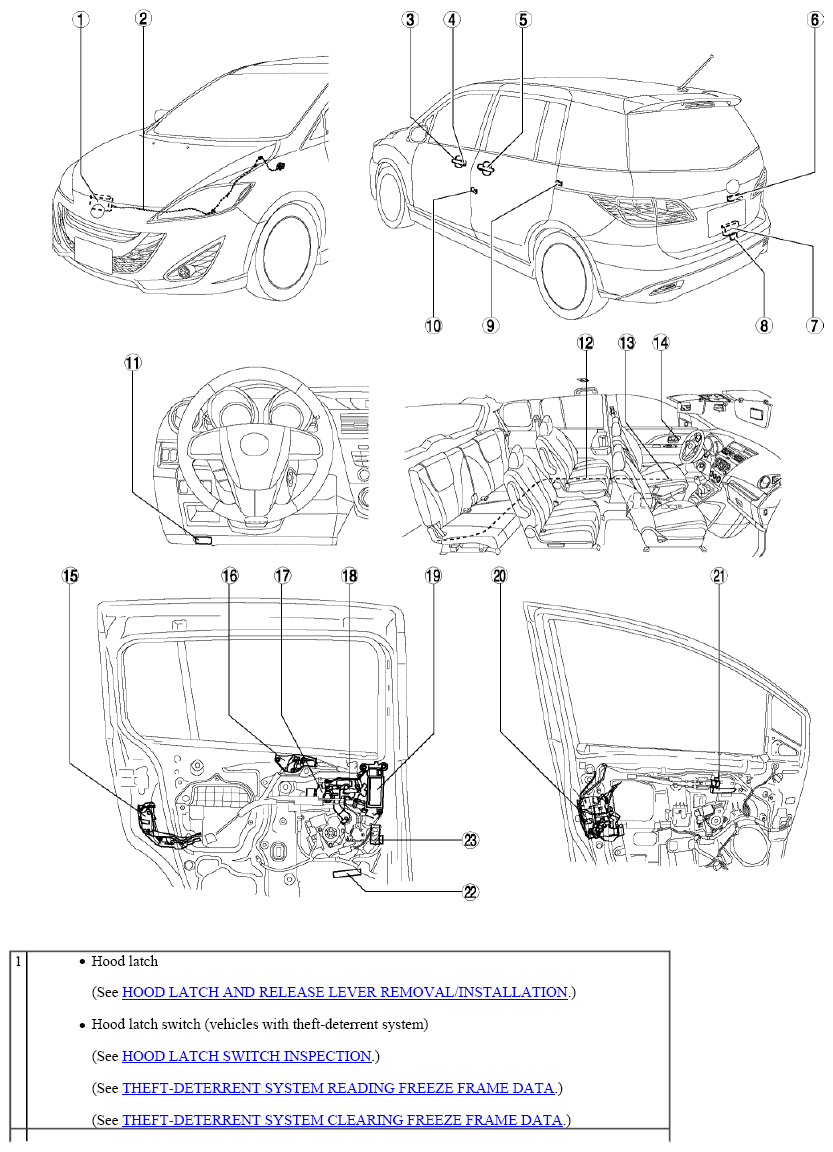

Fig 1: Identifying Locks And Openers Component Locations (1 Of 2)

G08153019

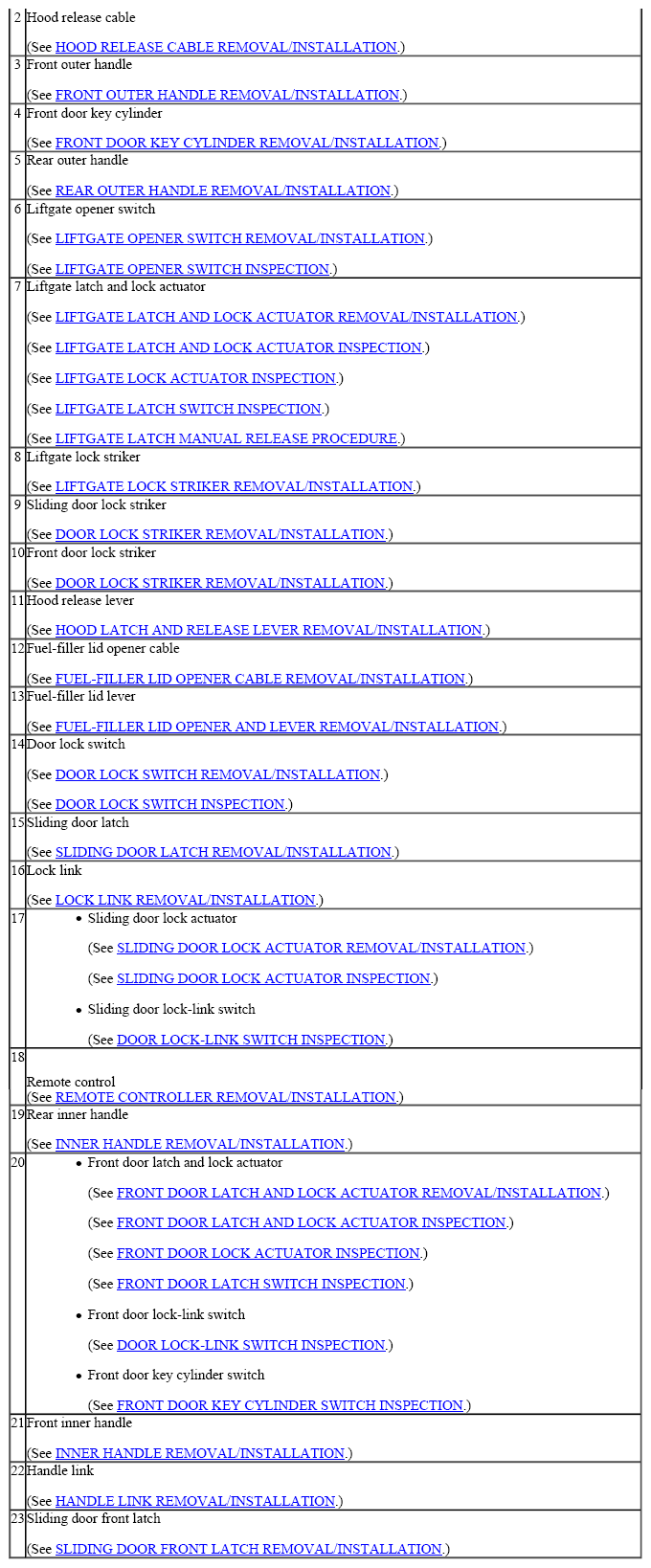

Fig 2: Identifying Locks And Openers Component Locations (2 Of 2)

G08153020
