Hood Latch

  1. Open the hood.
  2. Disconnect the hood latch switch connector. (Vehicles with theft-deterrent system)

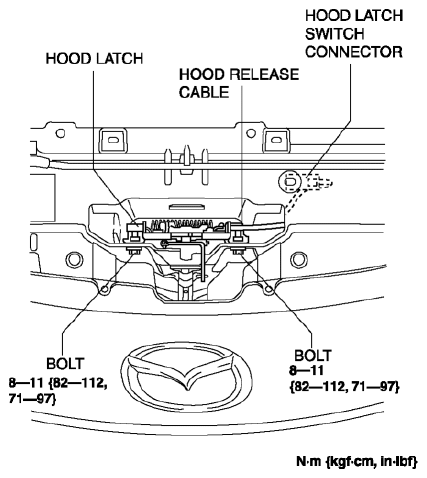

    Fig 1: Hood Latch Switch Connector Bolts With Torque Specifications
    G08153042
  3. Disconnect the hood release cable from the hood latch.
  4. Remove the bolts.
  5. Remove the hood latch.
  6. Install in the reverse order of removal.
  7. Adjust the hood. (See HOOD ADJUSTMENT .)
