Fuel-filler Lid Opener Lever

  1. Remove the front scuff plate (driver's side). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Partially peel back the floor covering.
  3. Remove the bolts.

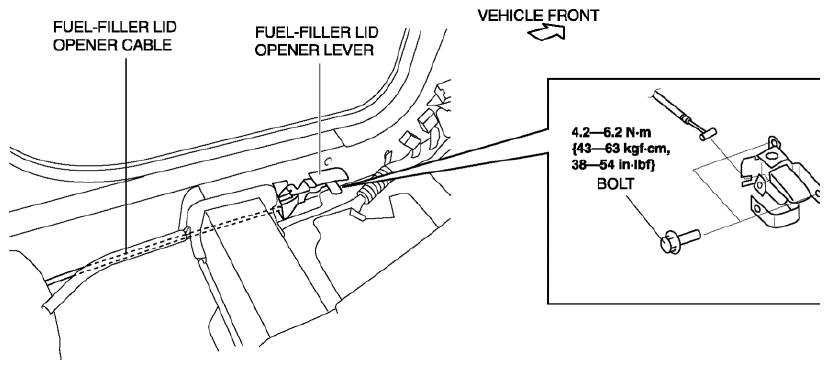

    Fig 1: Fuel-Filler Lid Opener Lever And Bolts With Torque Specifications
    G08153052
  4. Disconnect the fuel-filler lid opener cable and fuel-filler lid opener lever.
  5. Install in the reverse order of removal.
