Door Lock Striker Removal/Installation

  1. Remove the screws, and then remove the door lock striker.

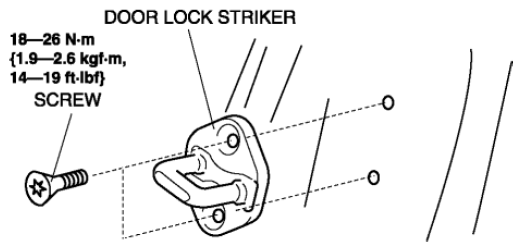

    Fig 1: Door Lock Striker And Screws With Torque Specifications
    G08153081
  2. Install in the reverse order of removal.
  3. Adjust the door lock striker. (See DOOR ADJUSTMENT .)
