Coil Antenna Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

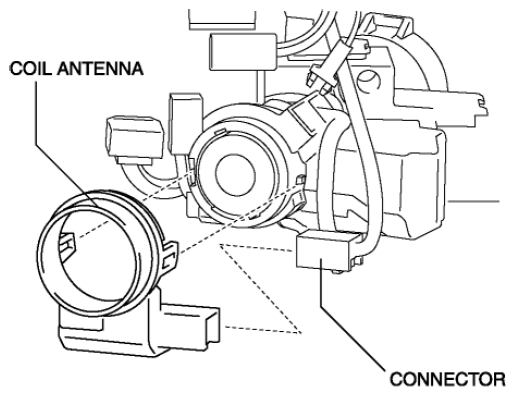

    Fig 1: Identifying Coil Antenna And Connector
    G08153114
  4. Detach the coil antenna hooks and remove the coil antenna from the key cylinder.
  5. Install in the reverse order of removal.
