Security Indicator Light: 13, DTC: B10D7:94/P1260:00 [Immobilizer System]: Notes

SECURITY INDICATOR LIGHT: 13 DTC: INSTRUMENT CLUSTER B10D7:94/ PCM P1260:00	Key ID number reading error
DETECTION CONDITION	Instrument cluster cannot read the key ID number data.
FAIL-SAFE FUNCTION	-

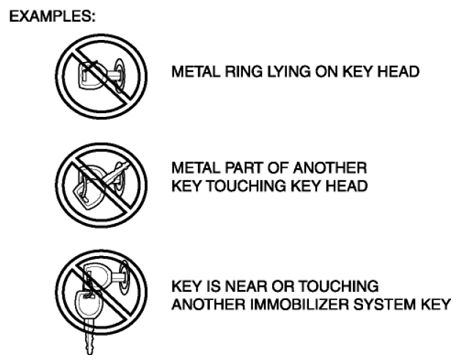

POSSIBLE CAUSE	Key (transponder) malfunction NOTE: If any of the following items are touching or near key head, signal communication between key and vehicle is negatively affected, resulting in engine not starting: Spare keys Keys for other vehicles equipped with an immobilizer system Any metallic object Any electronic device, or any credit or other card with magnetic strips Fig 1: Keyless Entry System Obstruction Item (Example) Coil antenna malfunction Instrument cluster malfunction PCM malfunction
SYSTEM WIRING DIAGRAM	-
