Security Indicator Light: 11, DTC: B10D9:87/P1260:00 [Immobilizer System]: Notes

SECURITY INDICATOR LIGHT: 11 DTC: INSTRUMENT CLUSTER B10D9:87/ PCM P1260:00	Communication error with coil antenna
DETECTION CONDITION	Instrument cluster cannot communicate with coil antenna.
FAIL-SAFE FUNCTION	-

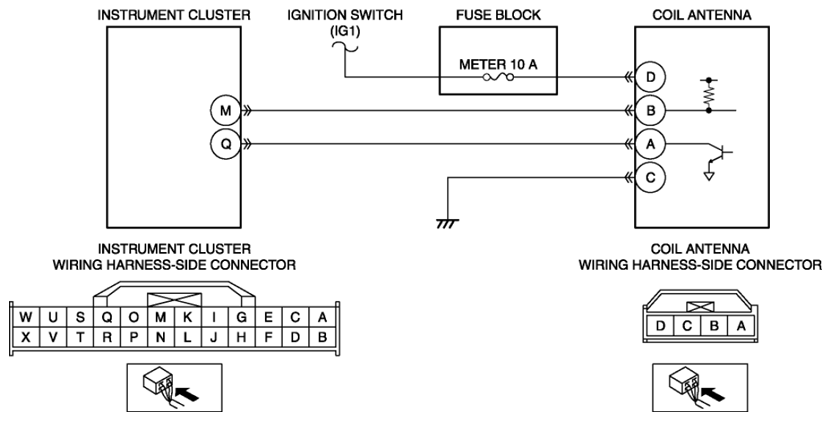

POSSIBLE CAUSE	Coil antenna connector or terminals malfunction Open circuit or short to ground in coil antenna power supply circuit Short to ground in wiring harness between METER 10 A fuse and coil antenna terminal D METER 10 A fuse malfunction Open circuit in wiring harness between ignition switch (IG1) and coil antenna terminal D Open circuit in wiring harness between coil antenna terminal C and body ground Instrument cluster connector or terminals malfunction Short to ground in wiring harness between the following terminals: Coil antenna terminal B-Instrument cluster terminal M Coil antenna terminal A-Instrument cluster terminal Q Open circuit in wiring harness between the following terminals: Coil antenna terminal B-Instrument cluster terminal M Coil antenna terminal A-Instrument cluster terminal Q Coil antenna malfunction Instrument cluster malfunction
