Windshield Wiper Arm And Blade Adjustment

Turn off the wiper switch while the wipers are operating to stop the windshield wiper at the auto-stop position.
Slide the serrated connecting part and adjust the windshield wiper arm and blade so that its end is aligned with the hollowed mark in the ceramic coating.

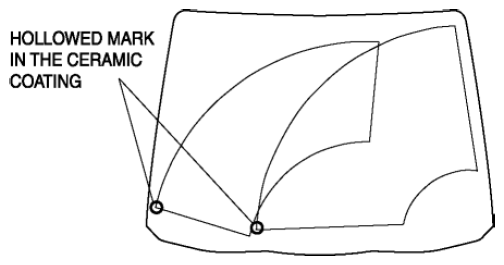

Fig 1: Identifying Hollowed Mark In Ceramic Coating
NOTE:
- If the hollowed mark in the ceramic coating cannot be located, measure the distance from the cowl grille end line and adjust the windshield wiper arm and blade.

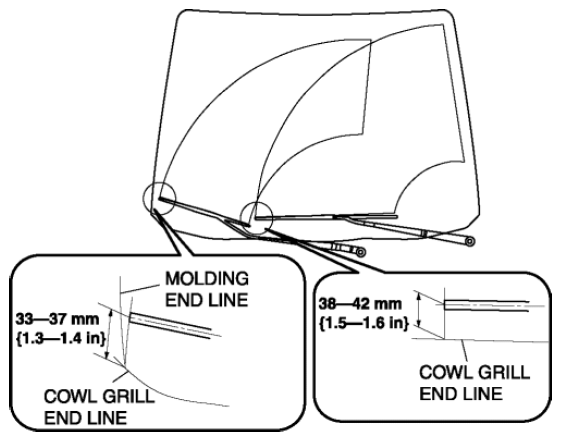

  Fig 2: Measuring Distance From Cowl Grille End Line And Adjust Windshield Wiper Arm And Blade
