Windshield Washer Nozzle Removal/Installation

NOTE:
  • Injection direction cannot be adjusted because the windshield washer nozzle is a stationary type.
  1. Disconnect the negative battery cable.
  2. Remove the hood insulator. (See HOOD DISASSEMBLY/ASSEMBLY .)
  3. Disconnect the windshield washer hose from the windshield washer nozzle.
  4. Press the tabs of the windshield washer nozzle.
  5. Press out the windshield washer nozzle from the hood.

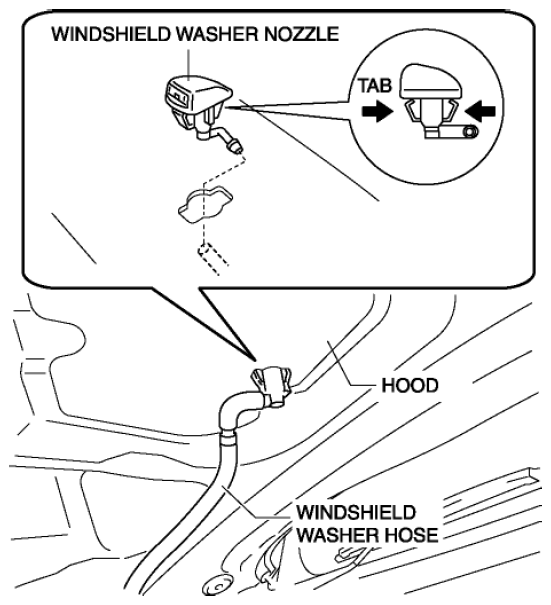

    Fig 1: Pressing Tabs Of Windshield Washer Nozzle
    G08153396
  6. Install in the reverse order of removal.
