Windshield Washer Hose Removal/Installation

Disconnect the negative battery cable.
Remove the hood insulator. (See HOOD DISASSEMBLY/ASSEMBLY .)
Slightly bend back the front mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)
Disconnect windshield washer hose A from the windshield washer motor.

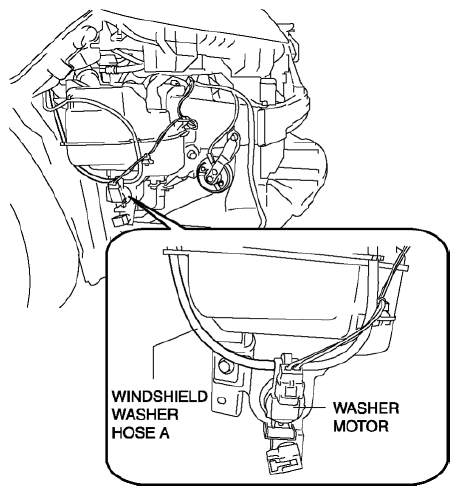

Fig 1: Identifying Windshield Washer Hose A And Windshield Washer Motor
Remove windshield washer hose A from clips A, B, C, and D.

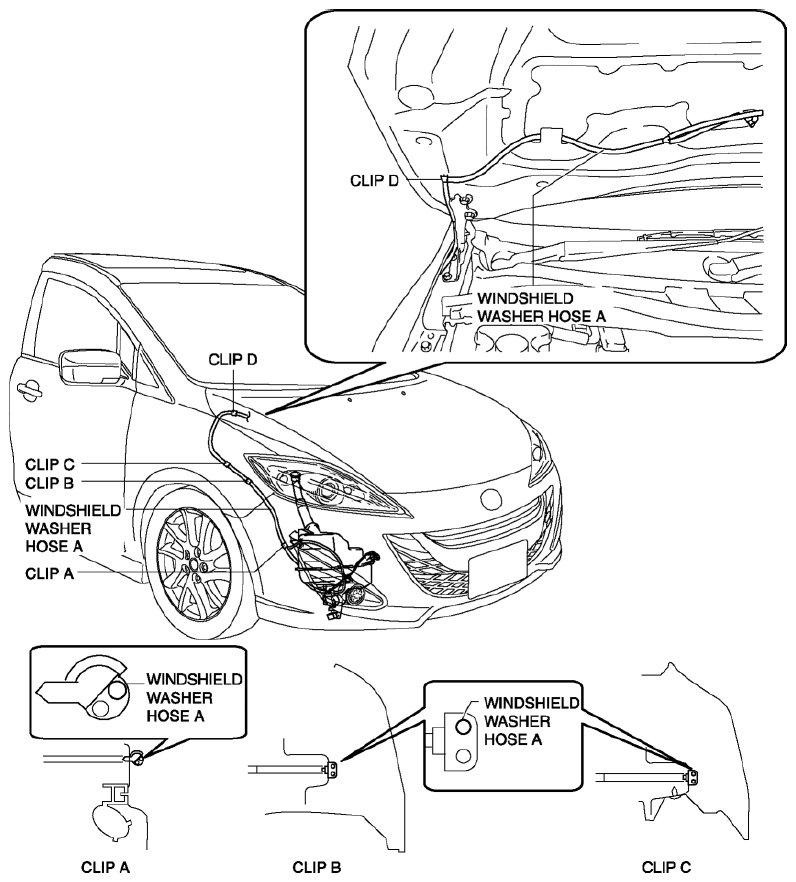

Fig 2: Identifying Windshield Washer Hose A, Clips A, B, C, And D
Disconnect windshield washer hose B from washer nozzle A.

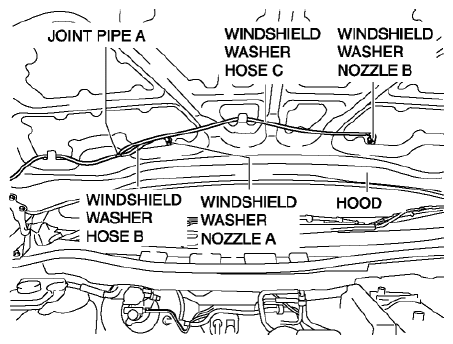

Fig 3: Identifying Windshield Washer Hose B And Washer Nozzle A
Disconnect windshield washer hose C from washer nozzle B.
Disconnect joint pipe A and remove windshield washer hose A, B and C.
Install in the reverse order of removal.
