Rear Wiper Arm And Blade Adjustment

  1. Turn off the wiper switch while the rear wiper is operating to stop the rear wiper at the auto-stop position.
  2. Slide the serrated connecting part and adjust the rear wiper arm and blade so that its end is aligned with the end line of the ceramic coating.

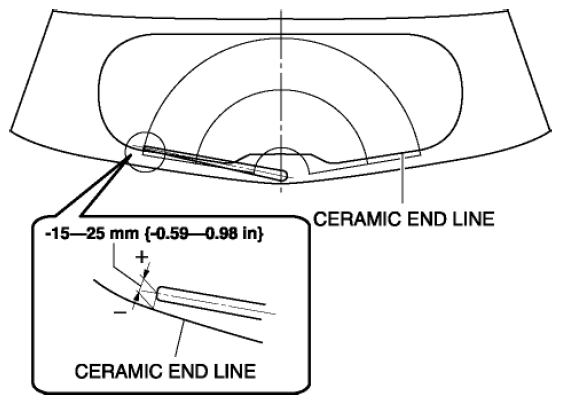

    Fig 1: Aligning Rear Wiper Arm And Blade With End Line Of Ceramic Coating
    G08153405
