Rear Washer Hose C Installation Note

  1. Align rear washer hose C and antenna feeder to the position measured before removing tape B.
    Fig 1: Aligning Rear Washer Hose C And Antenna Feeder To Position Measured Before Removing Tape B
    G08153418
  2. Wrap tape B to the marked position of the antenna feeder, and secure it with rear washer hose C.

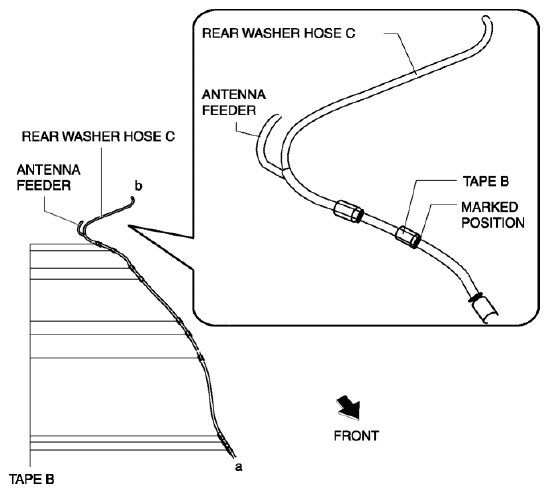

    Fig 2: Wrapping Tape B To Marked Position Of Antenna Feeder
    G08153419
