Vehicles With Auto Light System

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
  4. Verify that the continuity between the light switch terminals is as indicated in the table.
    • If not as indicated in the table, replace the light switch.

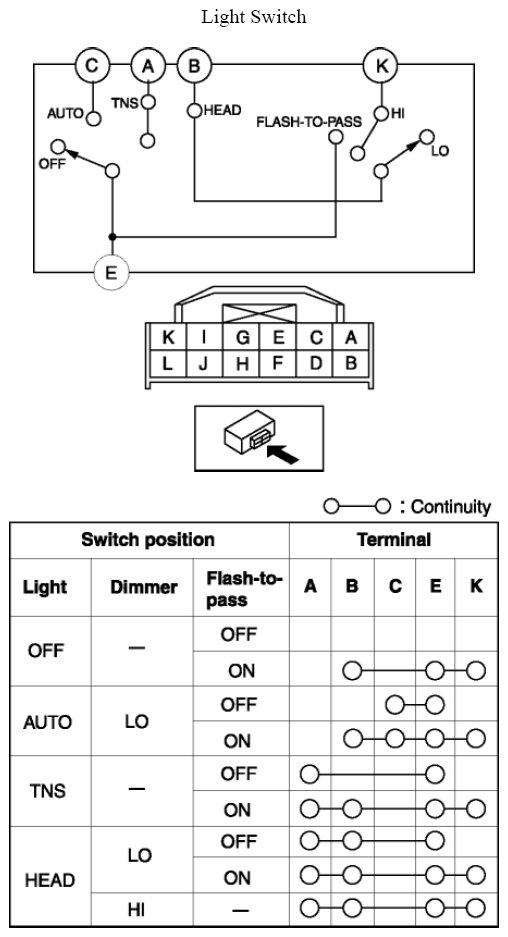

    Fig 1: Light Switch Terminals Continuity Chart
    G08153352

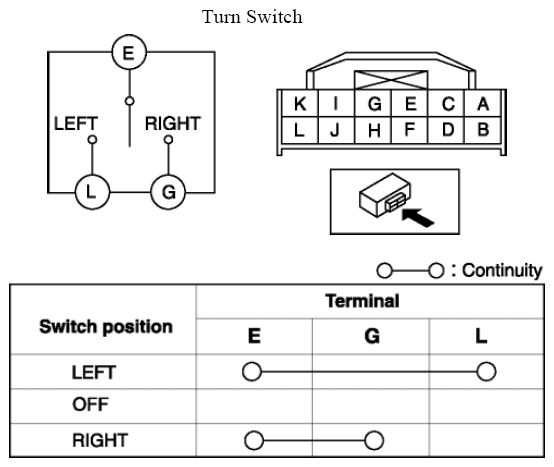

    Fig 2: Turn Switch Terminals Continuity Chart
    G08153353
