Interior Light Bulb Removal/Installation

  1. Disconnect the negative battery cable.
  2. Insert a tape-wrapped flathead screwdriver into the service hole, push it in the direction indicated by the arrow, and then remove the lens.

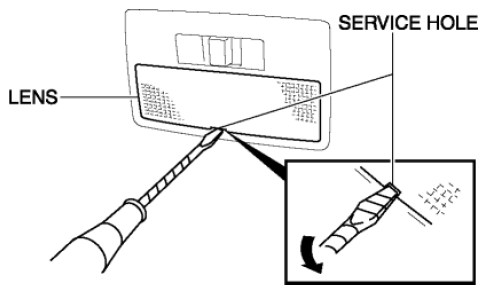

    Fig 1: Removing Interior Light Lens
    G08153368
  3. Remove the interior light bulb.

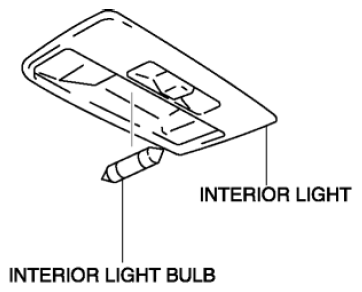

    Fig 2: Identifying Interior Light And Bulb
    G08153369
  4. Install in the reverse order of removal.
