Ignition Key Illumination Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the upper column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the ignition key illumination bulb.

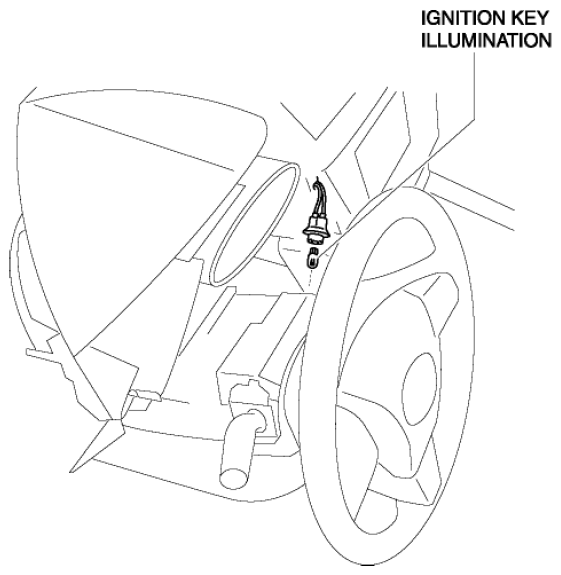

    Fig 1: Identifying Ignition Key Illumination Bulb
    G08153376
  4. Install in the reverse order of removal.
