Headlight Bulb Removal/Installation: High-Beam

  1. Disconnect the negative battery cable.
  2. Disconnect the connector.

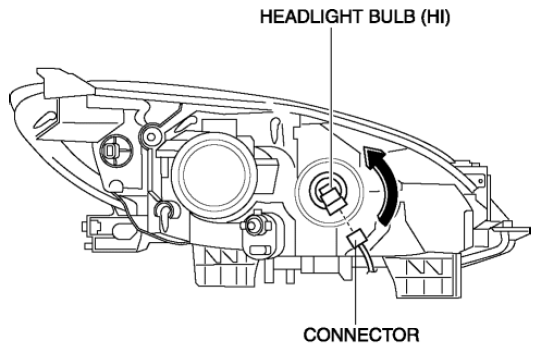

    Fig 1: Identifying Headlight Bulb (HI) Rotating Direction And Connector
    G08153296
  3. Rotate the headlight bulb (HI) in the direction of the arrow shown in the figure.
  4. Remove the headlight bulb (HI).

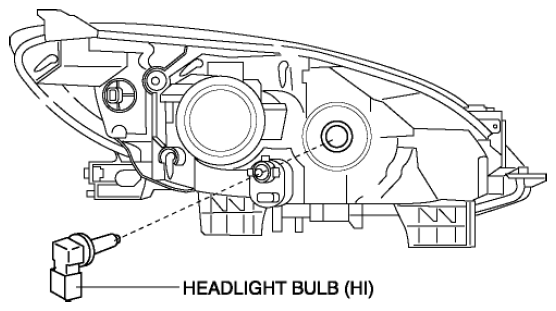

    Fig 2: Identifying Headlight Bulb (HI)
    G08153297
    CAUTION:
    • A halogen bulb generates extremely high heat when it is illuminated. If the area of the glass is soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.
  5. Install in the reverse order of removal.
