Hazard Warning Switch Removal/Installation

Disconnect the negative battery cable.
Remove the following parts:
1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
2. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
3. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
Remove the screws.

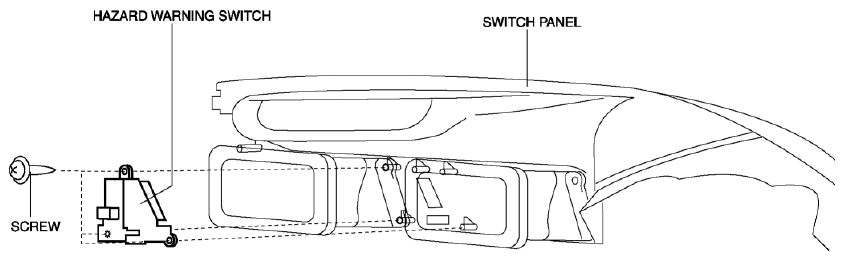

Fig 1: Identifying Hazard Warning Switch, Screw And Switch Panel
Remove the hazard warning switch.
Install in the reverse order of removal.
