Discharge Headlight System Inspection: Notes

WARNING:

• Incorrect servicing of the discharge headlight bulb could result in electrical shock. Before servicing the discharge headlight bulb, always refer to the service warnings.

  (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)

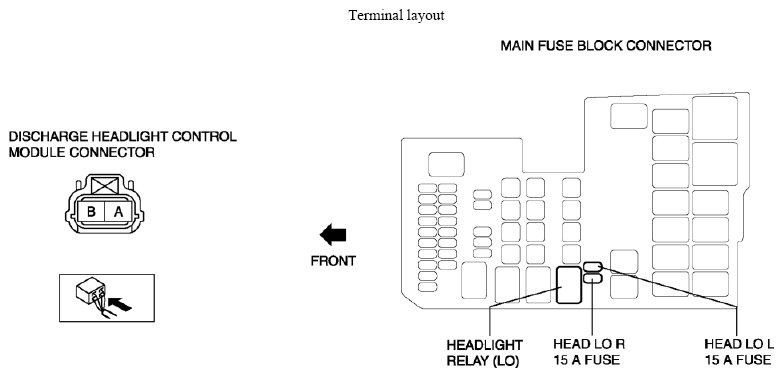

Fig 1: Identifying Discharge Headlight System Terminal Layout
