Effect Setting of Separation Control and High Tone Control: Remarks

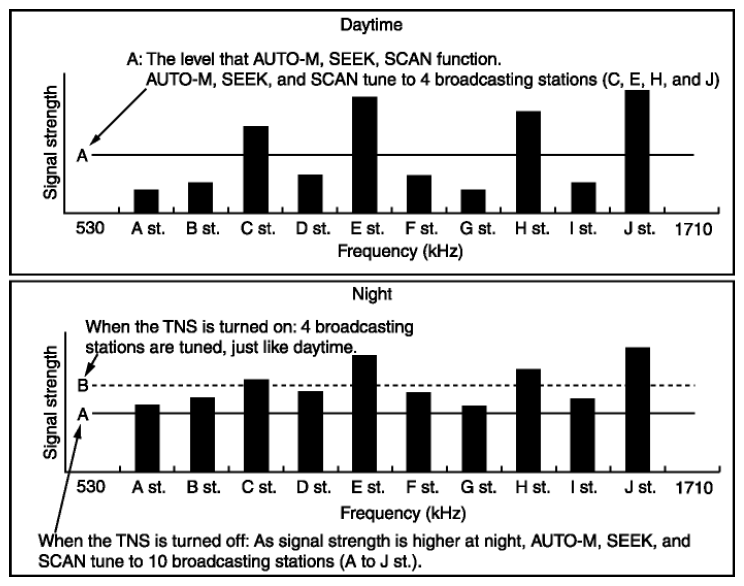

Fig 1: Radio Signals Strength Vs Frequency Graph During Day And Night
G08152696
