DTC: B116A:16, 26:Er83 [Bluetooth SYSTEM (HANDS-FREE TELEPHONE SYSTEM)]: Notes

DTC B116A:16, 26:Er83 Microphone circuit malfunction
DETECTION CONDITION  Short to ground in microphone power supply circuit
FAIL-SAFE FUNCTION  -
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Short to ground in wiring harness between the following terminals:
    • Bluetooth unit terminal C and microphone terminal C
  • Microphone malfunction
  • Bluetooth unit malfunction

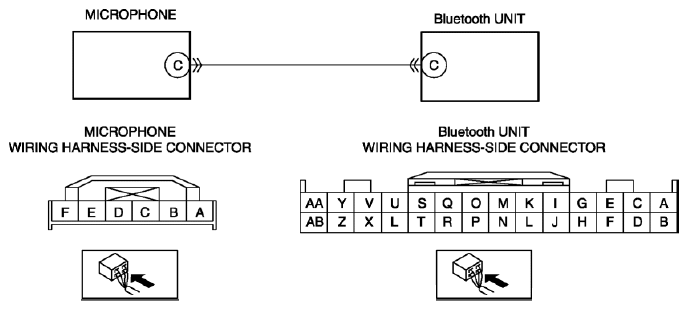

G08152600
