Without Using M-MDS (On-board Diagnostic Test Mode)

  1. Switch the ignition to ACC or ON.
  2. While pressing the POWER/VOLUME switch, simultaneously press the PRESET 1 button and the PRESET 6 button for 3 s or more  .

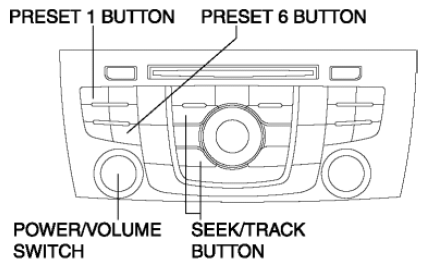

    Fig 1: Identifying Power/Volume Switch And Seek/Track, Preset 1 And 6 Buttons
    G08152594
    NOTE:
    • If several DTCs are in the memory, they can be displayed using the SEEK/TRACK button (up or down).

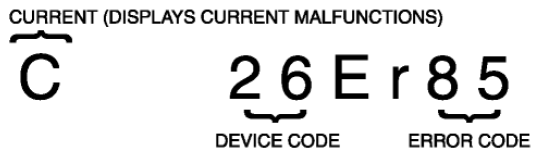

    Fig 2: Display Current And Device And Error Codes
    G08152595
  3. Switch the ignition OFF (LOCK) to stop the on-board diagnostic test mode.
