Software Version Verification

  1. Launch the on-board diagnostic test mode. (See DTC INSPECTION [BLUETOOTH SYSTEM (HANDS-FREE TELEPHONE SYSTEM)] .)
  2. Press the SEEK/TRACK down button to display the oldest error code of the error codes that have been recorded.
    NOTE:
    • If an error code has not been recorded, No Err is displayed.

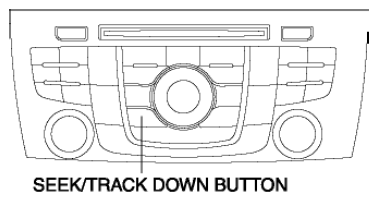

    Fig 1: Identifying Seek/Track Down Button
    G08152601
  3. Press the SEEK/TRACK down button.
  4. Verify the software version.
    Fig 2: Display Software Version
    G08152602
  5. Switch the ignition OFF (LOCK) to stop the on-board diagnostic test mode.
