Password Reset

  1. Switch the ignition to ACC or ON.
  2. Press the PRESET 2 button while pressing the AUTO-M button until the password reset verification beep sound is heard.

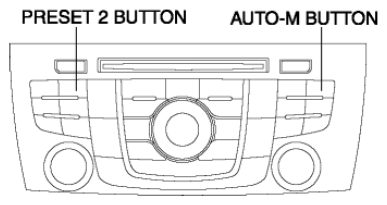

    Fig 1: Identifying Preset 2 And Auto-M Buttons
    G08152605
  3. Verify that "Clear" is displayed in the information display.
    Fig 2: Display Clear
    G08152606
  4. Switch the ignition OFF (LOCK) to stop the diagnostic assist function.
