Auxiliary Jack/USB Port Removal/Installation

Disconnect the negative battery cable.
Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
Remove the auxiliary jack in the direction of the arrow (2) shown in the figure while pressing the auxiliary jack tabs in the direction of the arrow (1).

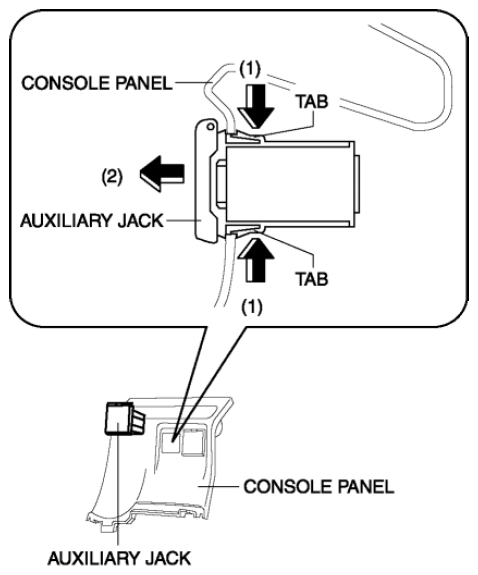

Fig 1: Identifying Auxiliary Jack Removal Direction And Auxiliary Jack Tabs Pressing Direction
Install in the reverse order of removal.
