Accessory Socket Removal/Installation: Rear

  1. Disconnect the negative battery cable.
  2. Remove the service hole cover.

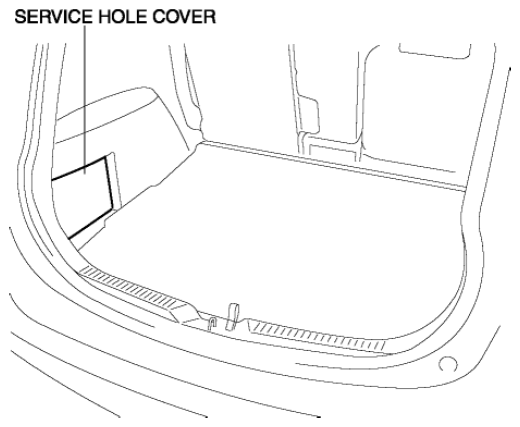

    Fig 1: Identifying Service Hole Cover
    G08153486
  3. Remove in the order indicated in the table.

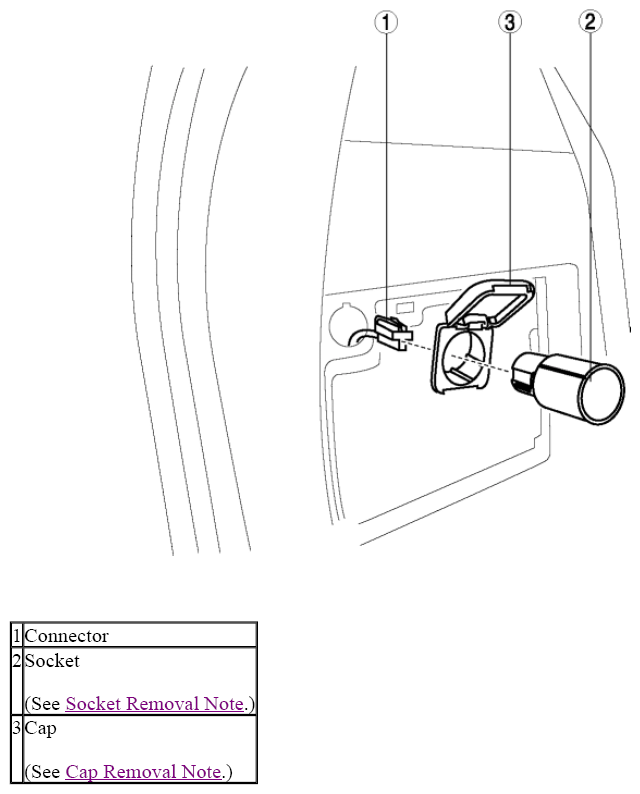

    Fig 2: Identifying Rear Accessory Socket And Cap
    G08153487
  4. Install in the reverse order of removal.
