Foreword [Multiplex Communication System]
>>
Troubleshooting Procedure
Troubleshooting Procedure

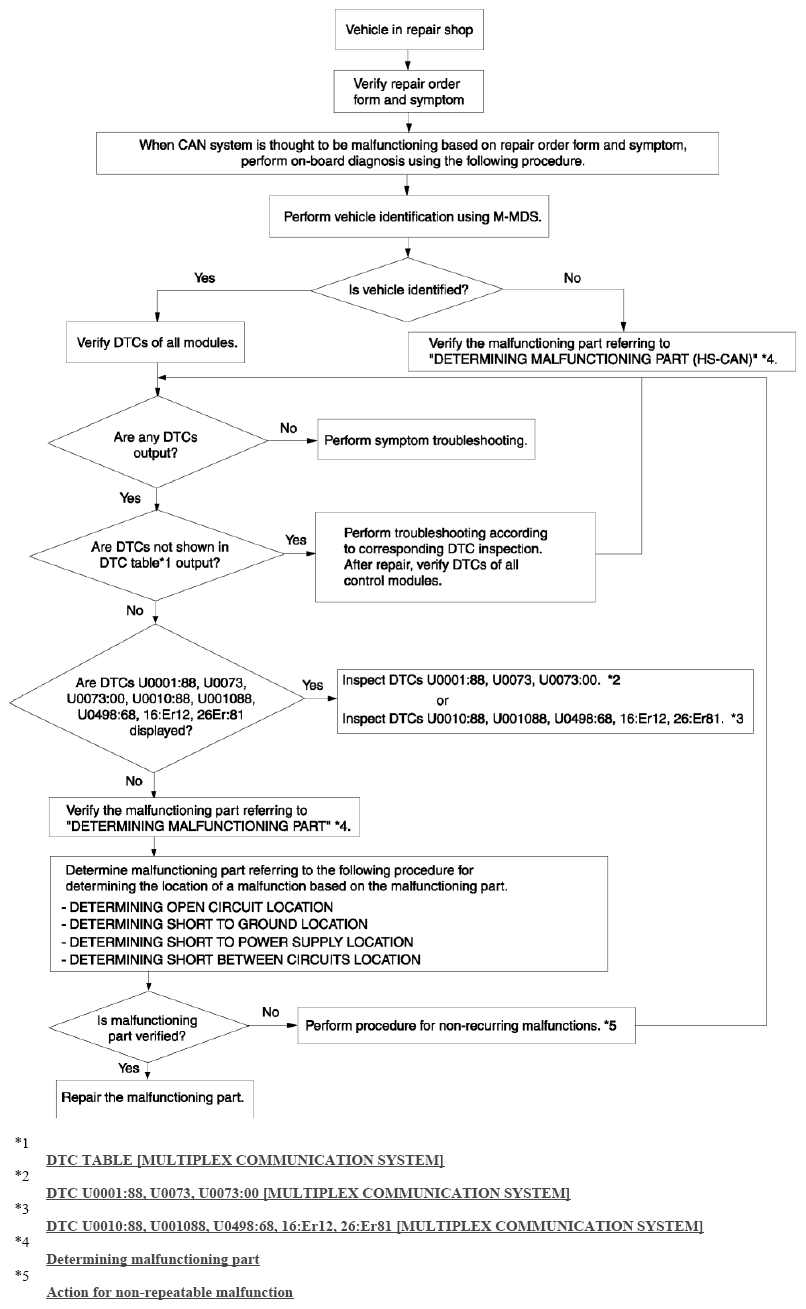

Fig 1: Multiplex Communication System (Foreword) Troubleshooting Procedure Flow Chart
