DTC output pattern and malfunctioning location: F

F

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between information display and connector C-45
• Connector C-45 malfunction
• Information display malfunction

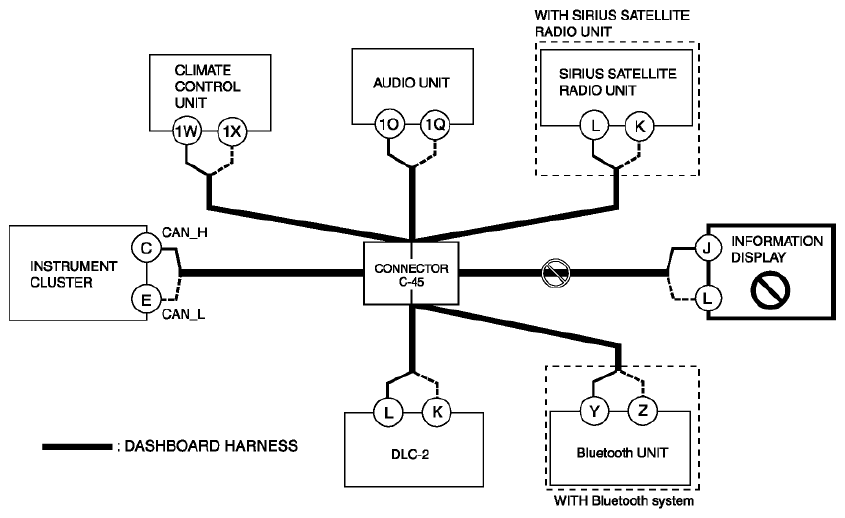

Fig 1: Multiplex Communication System - Wiring Diagram (For Connector C-45)

Inspection item

• Information display connector
• Connector C-45
• Wiring harness between information display terminal J and connector C-45
• Wiring harness between information display terminal L and connector C-45
• Information display
