Determining Open Circuit Location (HS-Can) [Multiplex Communication System]: H

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• BCM malfunction

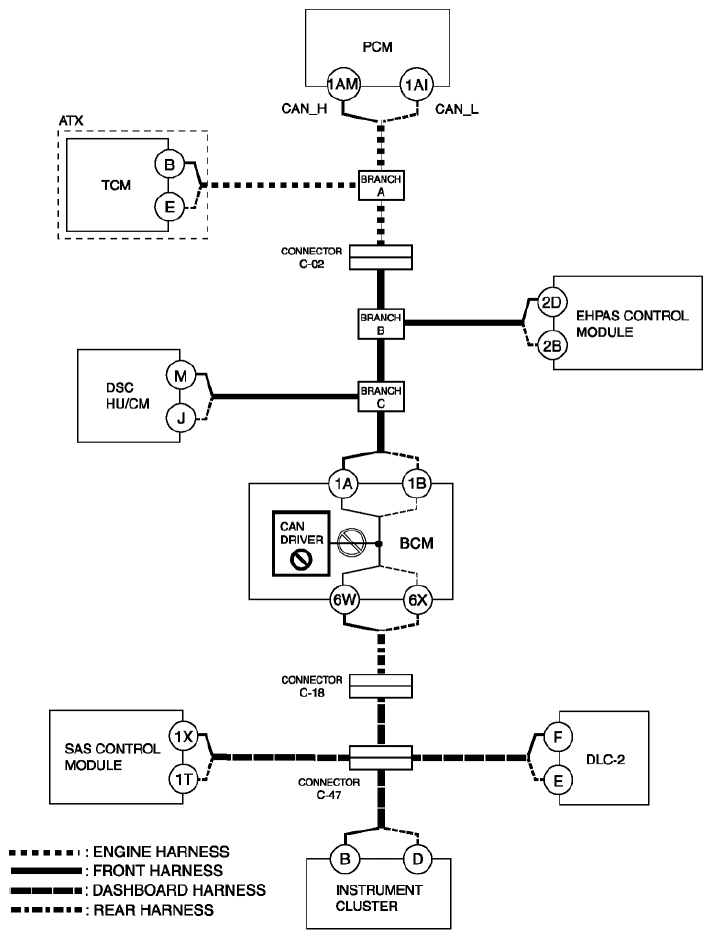

Fig 1: Multiplex Communication System (ATX) - Wiring Diagram

Inspection item

• BCM
