Determining Open Circuit Location (HS-Can) [Multiplex Communication System]: G

G

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between branch C and BCM

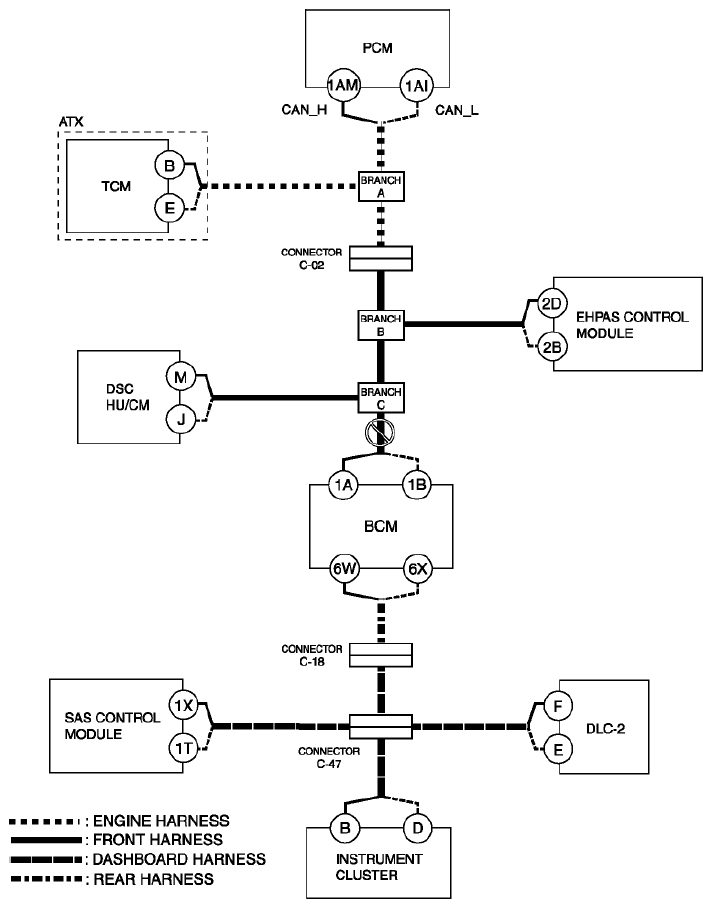

Fig 1: Multiplex Communication System (ATX) - Wiring Diagram

Inspection item

• BCM connector
• Wiring harness between branch C and BCM terminal 1A
• Wiring harness between branch C and BCM terminal 1B
