Determining Open Circuit Location (HS-Can) [Multiplex Communication System]: E

E

Possible cause

Connector terminal disconnection, poor contact, damage, deformation, corrosion
Open circuit in wiring harness between branch B and branch C

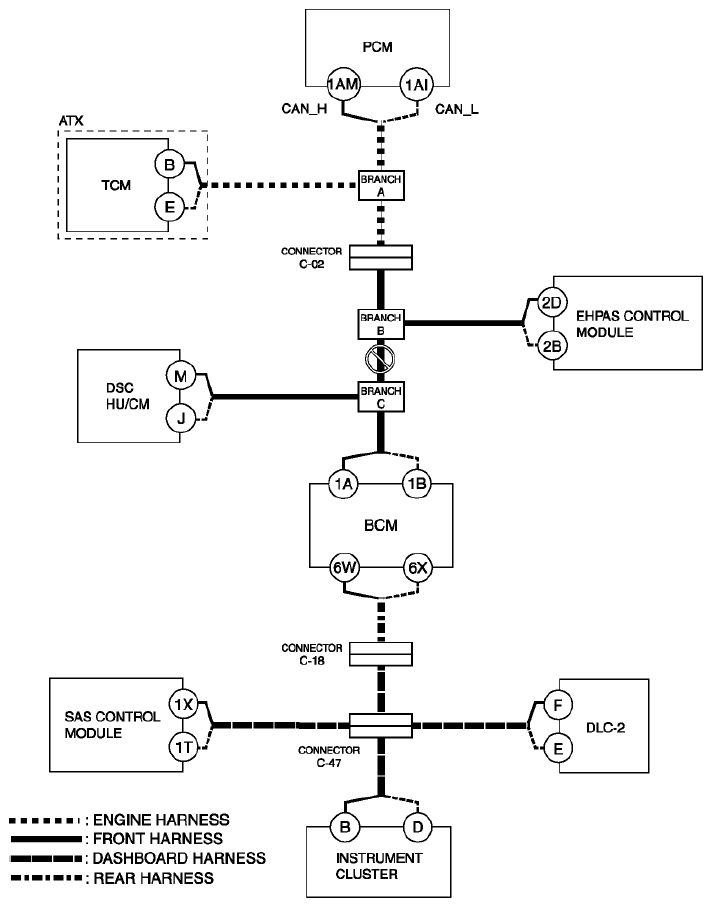

Fig 1: Multiplex Communication System (ATX) - Wiring Diagram

G08152652

Inspection item

Wiring harness between branch B and branch C
