Determining Open Circuit Location (HS-Can) [Multiplex Communication System]: D

D

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between EHPAS control module and branch B
• EHPAS control module malfunction

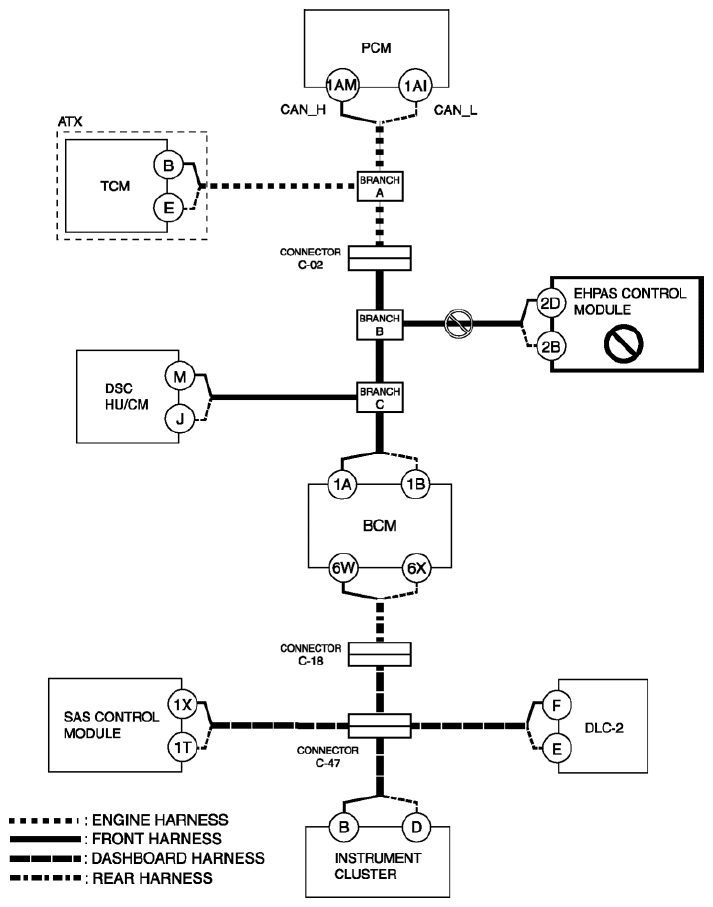

Fig 1: Multiplex Communication System (ATX) - Wiring Diagram

Inspection item

• EHPAS control module connector
• Wiring harness between EHPAS control module terminal 2D and branch B
• Wiring harness between EHPAS control module terminal 2B and branch B
• EHPAS control module
