Determining Open Circuit Location (HS-Can) [Multiplex Communication System]: C

C

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between branch A and connector C-02
• Open circuit in wiring harness between connector C-02 and branch B
• Connector C-02 malfunction

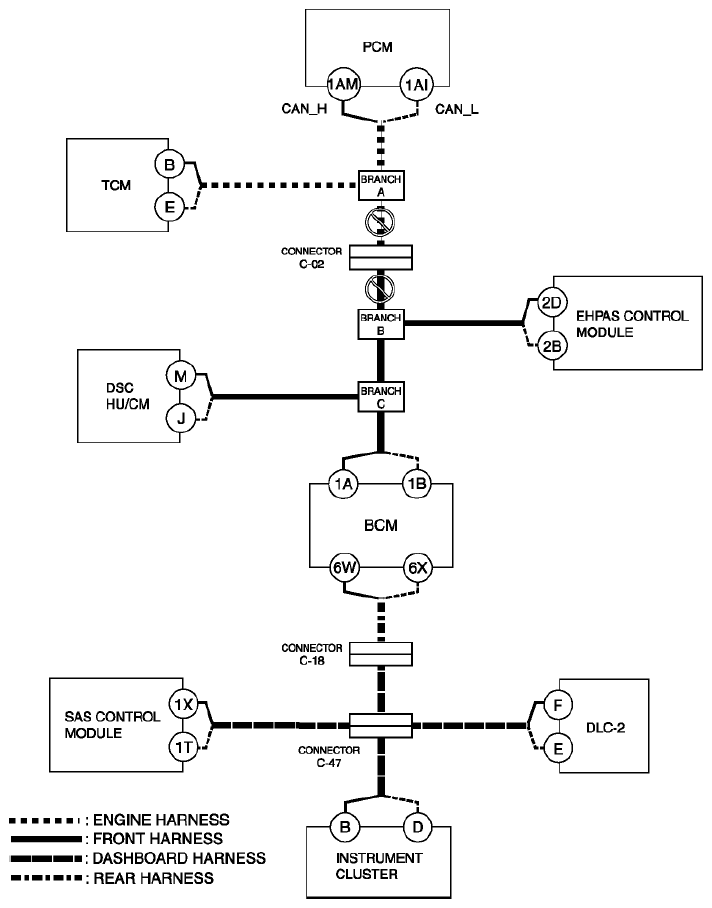

Fig 1: Multiplex Communication System - Wiring Diagram

Inspection item

• Connector C-02
• Wiring harness between branch A and connector C-02
• Wiring harness between connector C-02 and branch B
