5 Grand Touring
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
On-Board Diagnostic [Body Control System)
>>
On-Board Diagnostic Wiring Diagram [BCM]
On-Board Diagnostic Wiring Diagram [BCM]

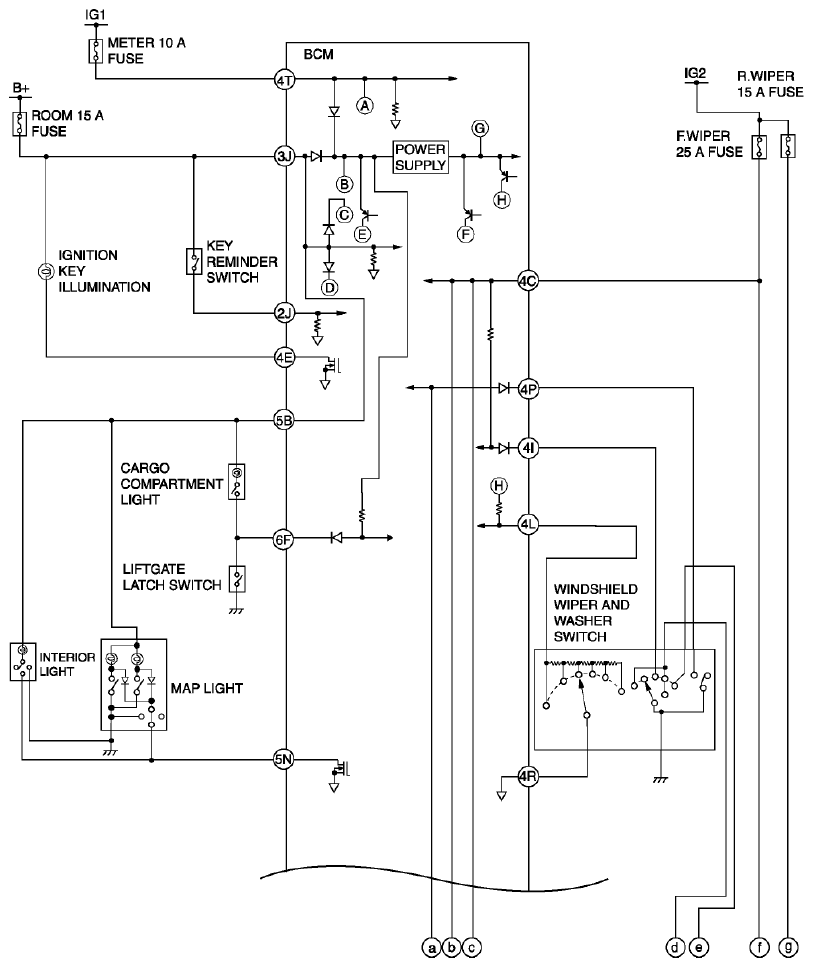

Fig 1: On-Board Diagnostic (BCM) - Wiring Diagram (1 Of 5)

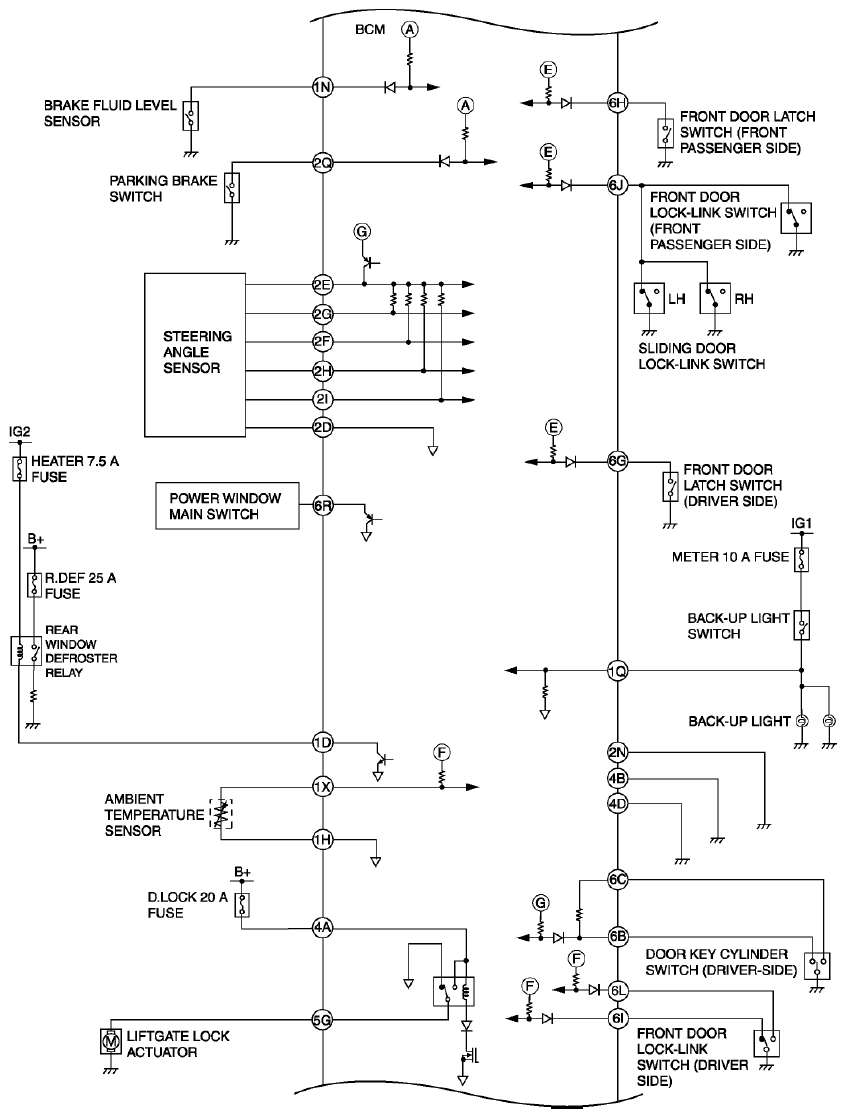

Fig 2: On-Board Diagnostic (BCM) - Wiring Diagram (2 Of 5)

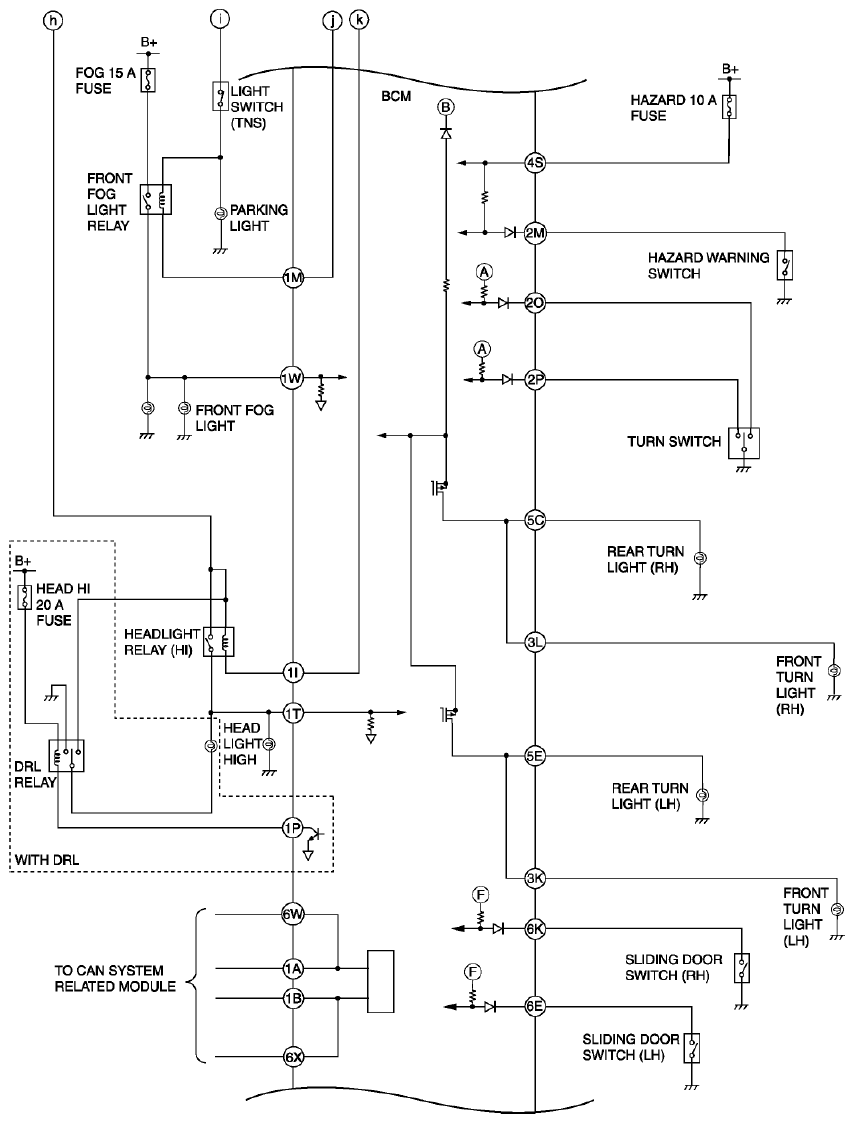

Fig 3: On-Board Diagnostic (BCM) - Wiring Diagram (3 Of 5)

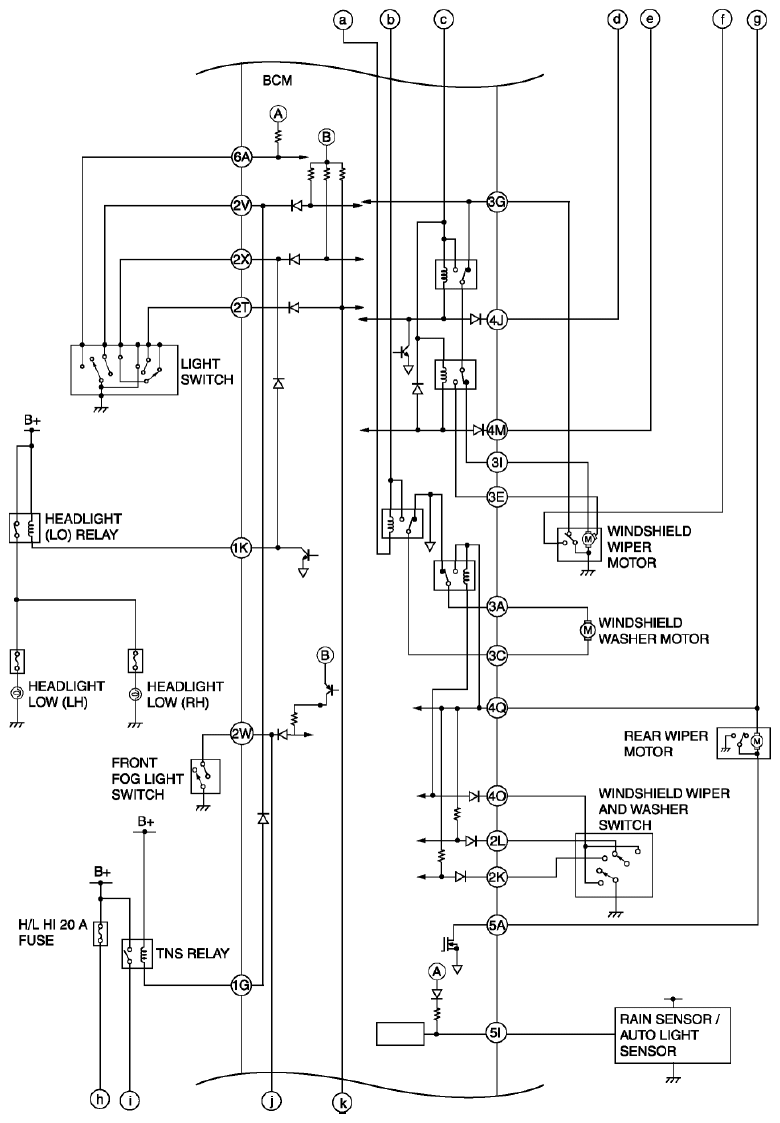

Fig 4: On-Board Diagnostic (BCM) - Wiring Diagram (4 Of 5)

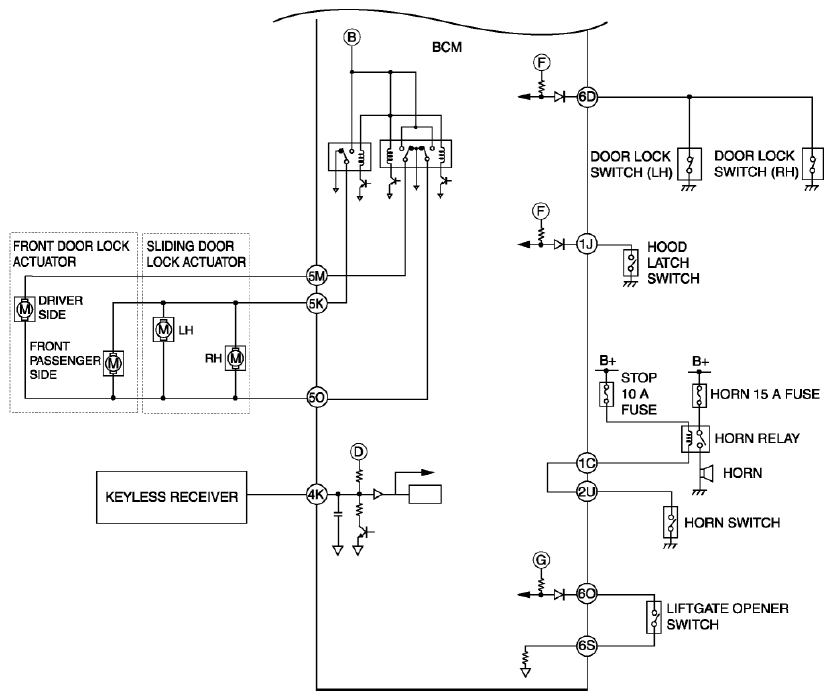

Fig 5: On-Board Diagnostic (BCM) - Wiring Diagram (5 Of 5)
