| DETECTION CONDITION |
- Ambient temperature sensor circuit voltage is high or low for 3 s or more
.
|
| FAIL-SAFE FUNCTION |
- Sends an ambient temperature malfunction signal via CAN communication.
|
| POSSIBLE CAUSE |
- Ambient temperature sensor connector or terminals malfunction
- Ambient temperature sensor malfunction
- BCM connector or terminals malfunction

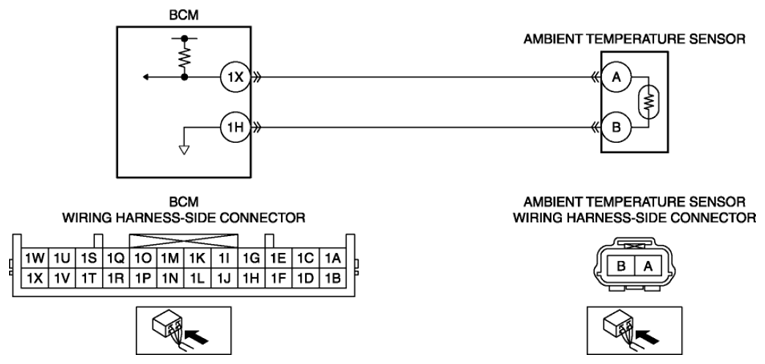

- Short to ground in wiring harness between the following terminals:
- Ambient temperature sensor terminal A-BCM terminal 1X
- Ambient temperature sensor terminal B-BCM terminal 1H
- Short to power supply in wiring harness between the following terminals:
- Ambient temperature sensor terminal A-BCM terminal 1X
- Ambient temperature sensor terminal B-BCM terminal 1H
- Open circuit in wiring harness between the following terminals:
- Ambient temperature sensor terminal A-BCM terminal 1X
- Ambient temperature sensor terminal B-BCM terminal 1H
- BCM malfunction
|
|
|
