DTC B1D36:11 [BCM]: Notes

DTC B1D36:11 Turn switch circuit malfunction
DETECTION CONDITION
  • Short to ground in turn switch circuit with the turn switch off.
FAIL-SAFE FUNCTION
  • Continuously turns the turn lights on/off.
POSSIBLE CAUSE
  • Light switch connector or terminals malfunction
  • Turn switch malfunction
  • BCM connector or terminals malfunction

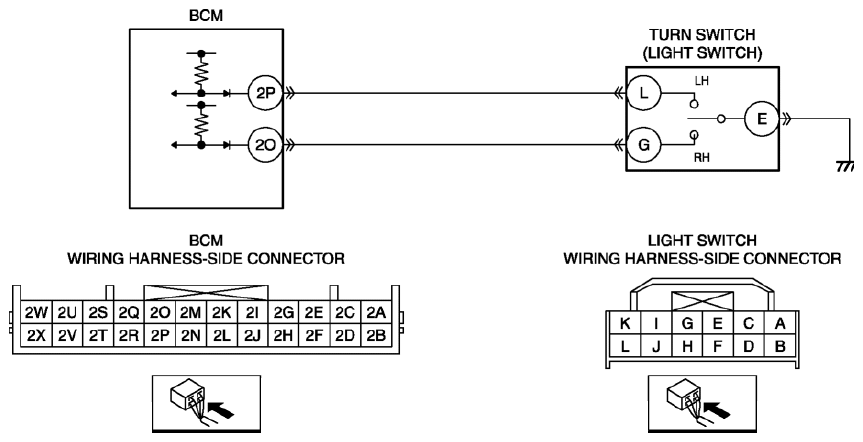

  • Short to ground in wiring harness between the following terminals:
    • Light switch terminal L-BCM terminal 2P
    • Light switch terminal G-BCM terminal 2O
  • BCM malfunction
G08152618
