DTC B1D35:11 [BCM]: Notes

DTC B1D35:11 Hazard warning switch circuit malfunction
DETECTION CONDITION
  • Short to ground in hazard warning switch circuit with the hazard warning switch off.
FAIL-SAFE FUNCTION
  • Continuously flashes the hazard warning lights.
POSSIBLE CAUSE
  • Hazard warning switch connector or terminals malfunction
  • Hazard warning switch malfunction
  • BCM connector or terminals malfunction
  • Short to ground in wiring harness between hazard warning switch terminal B and BCM terminal 2M
  • BCM malfunction

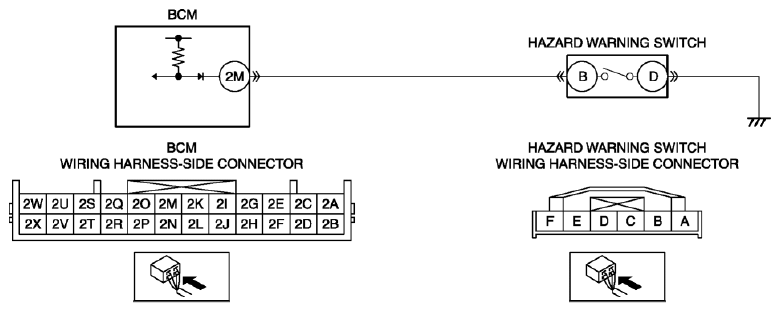

G08152617
