| DETECTION CONDITION |
- Short to ground in front door lock-link switch (LH) lock signal circuit with the front door lock-link switch (LH) unlocked.
|
| FAIL-SAFE FUNCTION |
- Does not sound the theft-deterrent siren by the unlock operation.
- Does not set the theft-deterrent system.
|
| POSSIBLE CAUSE |
- Front door latch and lock actuator (LH) connector or terminals malfunction
- Front door lock-link switch (LH) malfunction
- BCM connector or terminals malfunction

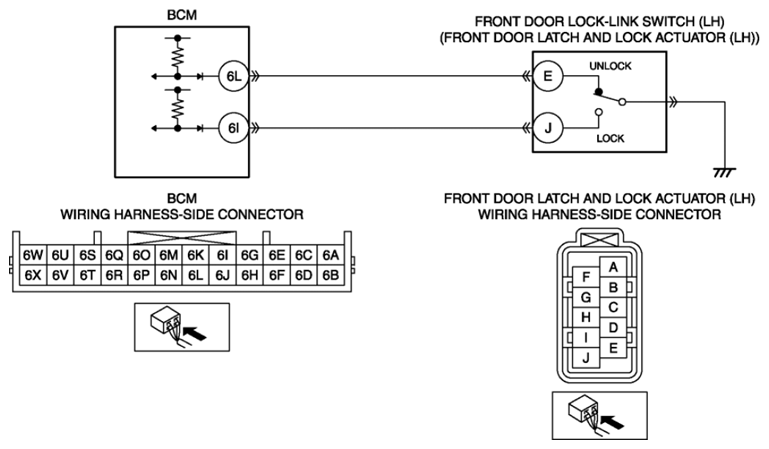

- Short to ground in wiring harness between front door latch and lock actuator (LH) terminal J and BCM terminal 6I
- BCM malfunction
|
|
|
