| DETECTION CONDITION |
- Front door key cylinder switch (LH) circuit voltage is less than 3.75 V
with the front door key cylinder switch (LH) off.
|
| FAIL-SAFE FUNCTION |
- Inhibits the door lock/unlock operation.
|
| POSSIBLE CAUSE |
- Front door latch and lock actuator (LH) connector or terminals malfunction
- Front door key cylinder switch (LH) malfunction
- BCM connector or terminals malfunction

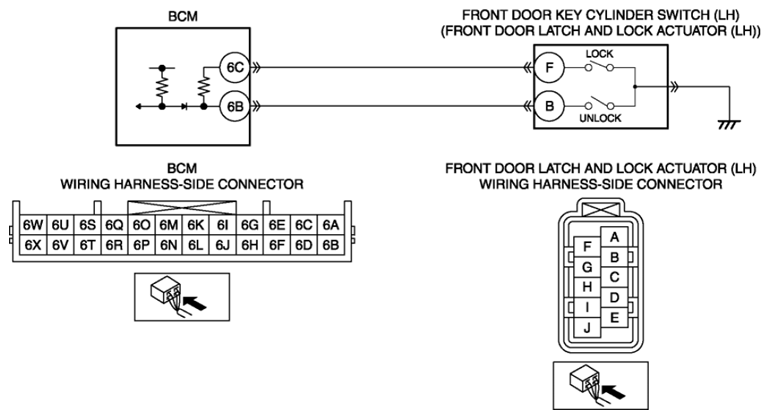

- Short to ground in wiring harness between the following terminals:
- Front door latch and lock actuator (LH) terminal F-BCM terminal 6C
- Front door latch and lock actuator (LH) terminal B-BCM terminal 6B
- BCM malfunction
|
|
|
