DTC B11C0:11 [BCM]: Notes

DTC B11C0:11 Sliding door switch (RH) circuit malfunction
DETECTION CONDITION
  • Short to ground in sliding door switch (RH) circuit with the rear door (RH) closed (sliding door switch (RH) off).
FAIL-SAFE FUNCTION
  • Inhibits the door lock control.
  • Does not set the theft-deterrent system.
POSSIBLE CAUSE
  • Sliding door switch (RH) connector or terminals malfunction
  • Sliding door switch (RH) malfunction
  • BCM connector or terminals malfunction

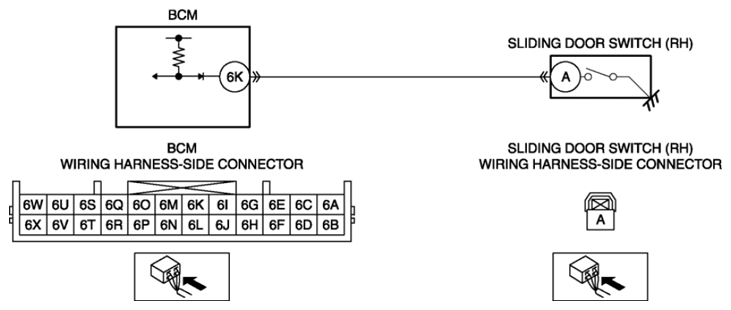

  • Short to ground in wiring harness between sliding door switch (RH) terminal A and BCM terminal 6K
  • BCM malfunction
G08152629
