| DETECTION CONDITION |
- Short to ground in liftgate latch switch circuit with the liftgate closed (liftgate latch switch off).
|
| FAIL-SAFE FUNCTION |
- Does not set the theft-deterrent system.
|
| POSSIBLE CAUSE |
- Liftgate latch and lock actuator connector or terminals malfunction
- BCM connector or terminals malfunction

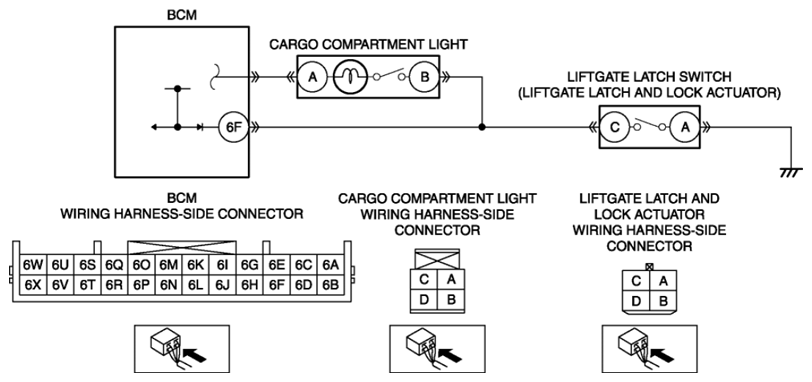

- Short to ground in wiring harness between the following terminals:
- Liftgate latch and lock actuator terminal C-BCM terminal 6F
- Liftgate latch and lock actuator terminal C-Cargo compartment light terminal B
- Liftgate latch switch malfunction
- BCM malfunction
|
|
|
