| DETECTION CONDITION |
- Open circuit in front door latch switch (LH) circuit with the front door (LH) closed (front door latch switch (LH) on).
|
| FAIL-SAFE FUNCTION |
- Inhibits the door lock control.
- Does not set the theft-deterrent system.
|
| POSSIBLE CAUSE |
- Front door latch and lock actuator (LH) connector or terminals malfunction

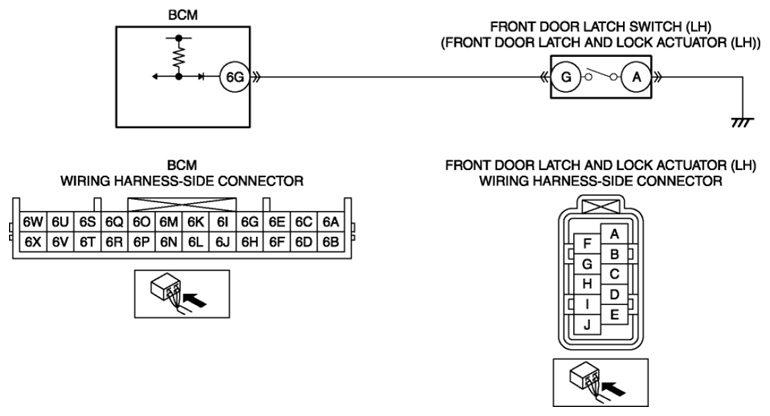

- Open circuit in wiring harness between front door latch and lock actuator (LH) terminal A and body ground
- Front door latch switch (LH) malfunction
- BCM connector or terminals malfunction
- Open circuit in wiring harness between front door latch and lock actuator (LH) terminal G and BCM terminal 6G
- BCM malfunction
|
|
|
