| DETECTION CONDITION |
- Open circuit in front door lock-link switch (LH) unlock signal circuit with the front door lock-link switch (LH) unlocked.
|
| FAIL-SAFE FUNCTION |
- Does not sound the theft-deterrent siren by the unlock operation.
- Does not set the theft-deterrent system.
|
| POSSIBLE CAUSE |

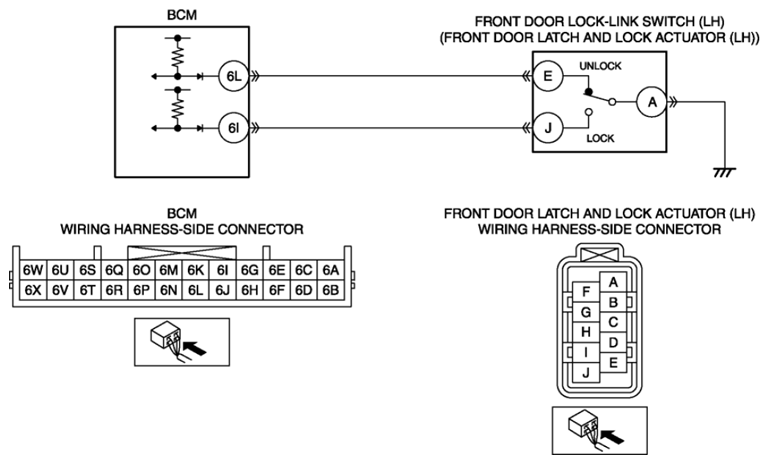

- Front door latch and lock actuator (LH) connector or terminals malfunction
- Open circuit in wiring harness between the front door latch and lock actuator (LH) terminal A and body ground
- Front door lock-link switch (LH) malfunction
- BCM connector or terminals malfunction
- Open circuit in wiring harness between front door latch and lock actuator (LH) terminal E and BCM terminal 6L
- BCM malfunction
|
|
|
