DTC B10D0:11 [BCM]: Notes

DTC B10D0:11 Liftgate opener switch circuit malfunction
DETECTION CONDITION
  • Short to ground in liftgate opener switch circuit.
FAIL-SAFE FUNCTION
  • Does not allow the liftgate to open.
POSSIBLE CAUSE
  • Liftgate opener switch connector or terminals malfunction
  • Liftgate opener switch malfunction
  • BCM connector or terminals malfunction

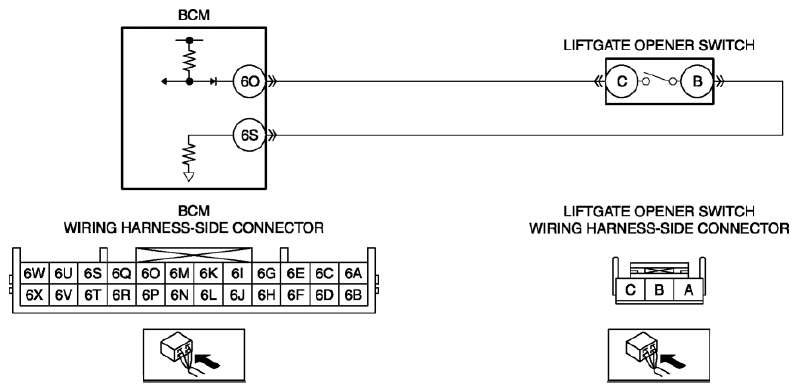

  • Short to ground in wiring harness between the following terminals:
    • Liftgate opener switch terminal C-BCM terminal 6O
    • Liftgate opener switch terminal B-BCM terminal 6S
  • BCM malfunction
G08152620
