| DETECTION CONDITION |
- BCM cannot receive the signal from rain sensor continuously for 10 times
.
|
| FAIL-SAFE FUNCTION |
- Continues the operation before the malfunction detection.
|
| POSSIBLE CAUSE |
- Rain sensor connector or terminals malfunction
- BCM connector or terminals malfunction

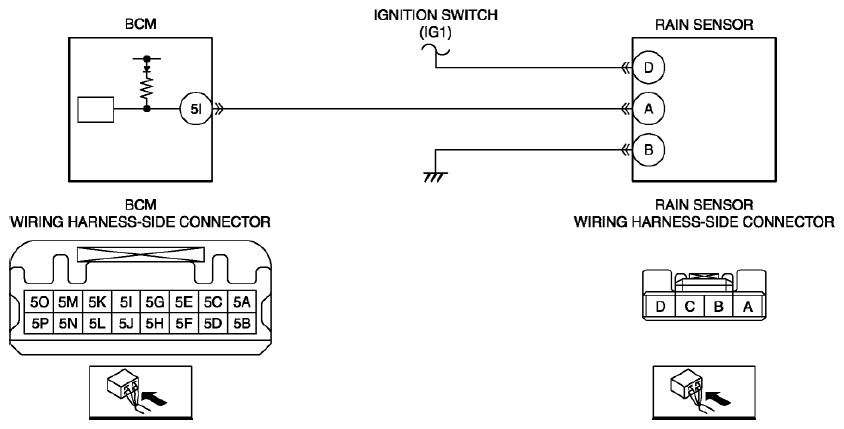

- Short to ground in wiring harness between rain sensor terminal A and BCM terminal 5I
- Short to power supply in wiring harness between rain sensor terminal A and BCM terminal 5I
- Open circuit in wiring harness between rain sensor terminal A and BCM terminal 5I
- Rain sensor malfunction
- BCM malfunction
|
|
|
