| DETECTION CONDITION |
- BCM cannot receiver the signal from keyless receiver continuously 12 times
.
|
| FAIL-SAFE FUNCTION |
- Inhibits the door lock control using the transmitter.
|
| POSSIBLE CAUSE |
- Keyless receiver connector or terminals malfunction
- BCM connector or terminals malfunction

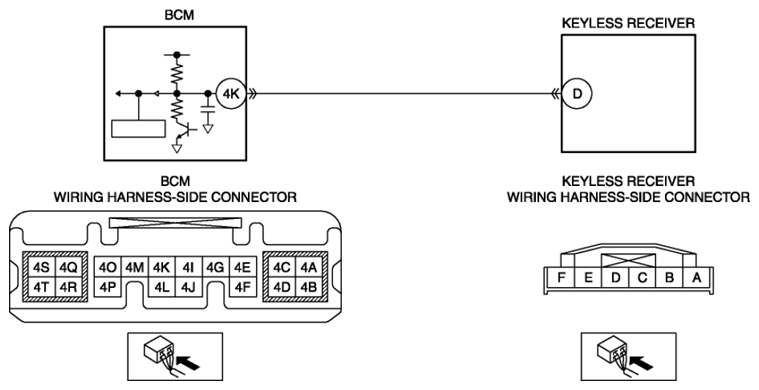

- Short to ground in wiring harness between keyless receiver terminal D and BCM terminal 4K
- Short to power supply in wiring harness between keyless receiver terminal D and BCM terminal 4K
- Open circuit in wiring harness between keyless receiver terminal D and BCM terminal 4K
- Keyless receiver malfunction
- BCM malfunction
|
|
|
