| DETECTION CONDITION |
- Door lock switch circuit voltage is less than 3.75 V
with the door lock switch off.
|
| FAIL-SAFE FUNCTION |
- Does not allow the lock/unlock operation using the central door lock control.
|
| POSSIBLE CAUSE |
- Door lock switch (LH/RH) connector or terminals malfunction
- BCM connector or terminals malfunction

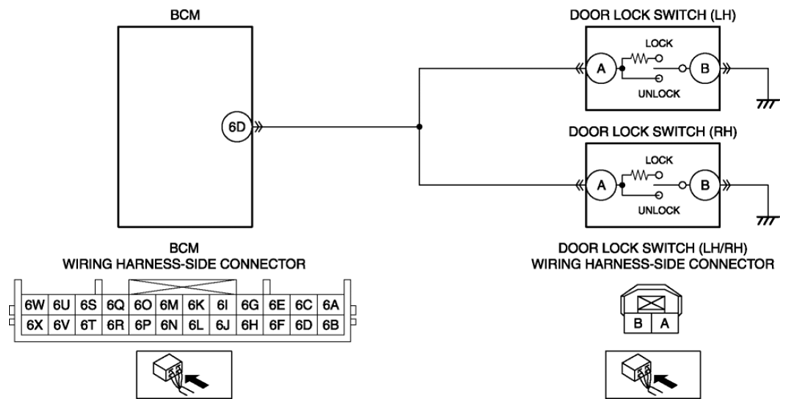

- Short to ground in wiring harness between the following terminals:
- Door lock switch (LH) terminal A-BCM terminal 6D
- Door lock switch (RH) terminal A-BCM terminal 6D
- Door lock switch (LH/RH) malfunction
- BCM malfunction
|
|
|
