DTC B1079:13 [BCM]: Notes

DTC B1079:13 Hood latch switch circuit malfunction
DETECTION CONDITION
  • Open circuit in hood latch switch circuit with the hood closed (hood latch switch on).
FAIL-SAFE FUNCTION
  • Does not set the theft-deterrent system.
POSSIBLE CAUSE
  • Hood latch switch connector or terminals malfunction
  • Open circuit in wiring harness between hood latch switch terminal B and body ground
  • Hood latch switch malfunction
  • BCM connector or terminals malfunction
  • Open circuit in wiring harness between hood latch switch terminal A and BCM terminal 1J
  • BCM malfunction

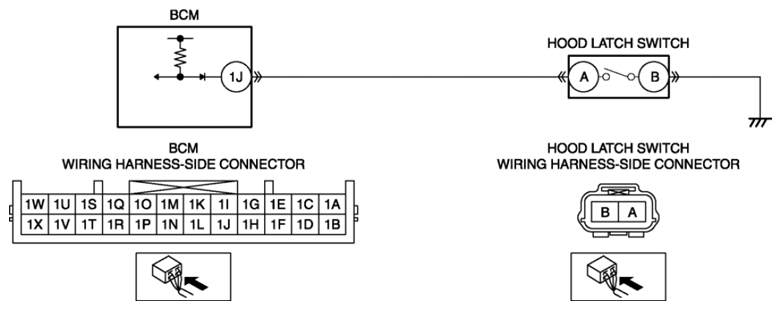

G08152626
