DTC B1048:13 [BCM]: Notes

DTC B1048:13	Brake fluid level sensor circuit malfunction
DETECTION CONDITION	Open circuit in brake fluid level sensor circuit with the brake fluid amount on the upper side of the minimum.
FAIL-SAFE FUNCTION	-

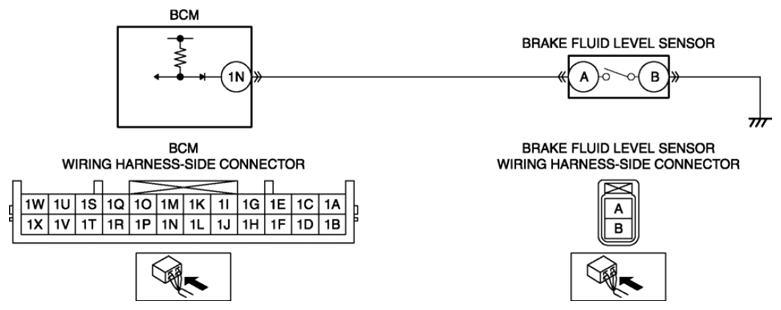

POSSIBLE CAUSE	Brake fluid level sensor connector or terminals malfunction Open circuit in wiring harness between brake fluid level sensor terminal B and body ground Brake fluid level sensor malfunction BCM connector or terminals malfunction Open circuit in wiring harness between brake fluid level sensor terminal A and BCM terminal 1N BCM malfunction
