DTC B1007:11 [BCM]: Notes

DTC B1007:11 Headlight high circuit malfunction
DETECTION CONDITION
  • Short to ground in headlight high circuit.
FAIL-SAFE FUNCTION
  • Turns on the headlight high.
POSSIBLE CAUSE
  • Headlight relay (HI) malfunction
  • BCM connector or terminals malfunction

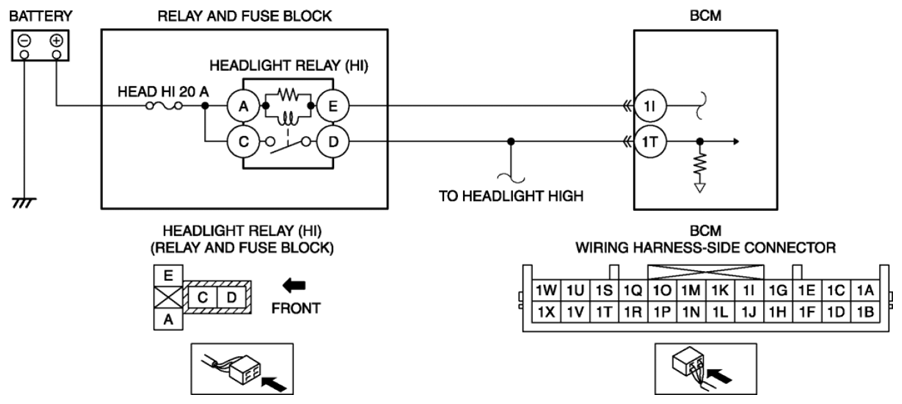

  • Short to ground in wiring harness between headlight relay (HI) terminal D and BCM terminal 1T
  • BCM malfunction
G08152621
